AC POWER · EC axial fans

JE92 — 92mm EC axial cooling fans

Compare JE9225EC 92 × 92 × 25 mm and JE9238EC 92 × 92 × 38 mm EC fans for 115 or 230 VAC equipment cooling. Explore electrical configurations, mechanical drawings, airflow curves and downloadable datasheets.

Model selection

Specification	JE92 series
Family	JE92 EC axial fans
Model series	JE9225EC / JE9238EC
Sizes	92 × 92 × 25 mm / 92 × 92 × 38 mm
Power supply	115 / 230 VAC, 50 / 60 Hz
Frame / impeller	Thermoplastic PBT, UL 94V-0
Bearing system	Ball or sleeve bearing
Life expectancy	30,000 hrs (Sleeve) / 50,000 hrs (Ball), continuous operation at 25°C, 65% RH

Request the right configuration

Include AC supply voltage, required airflow, static pressure, quantity and control requirements.

Inquire about JE9225EC Inquire about JE9238EC

Typical Applications

JE9225EC and JE9238EC EC fans provide ventilation and power-electronics cooling for the following applications.

Frequency Converters & Servo Drives: Cooling for power modules inside frequency inverters and servo drives.
Electrical Control Cabinets: Ventilation for small-size electrical control cabinets and PLC industrial control cabinets.
Industrial IPC & Host Chassis: Heat dissipation for industrial IPCs and industrial host chassis.
Welding & Industrial Power Supplies: Heat dissipation for welding equipment, switching power supplies and industrial power supplies.
New Energy & Power: Small charging-pile modules and OBC heat dissipation; PV inverters and BMS energy-storage cabinets; UPS units and power monitoring instruments.
Stage & Lighting Equipment: High-power LED power supplies and LED control cabinets; moving-head stage lights, laser lights and professional bar lighting.
Medical Instrumentation: Chassis ventilation for biochemical analyzers and patient monitors; small-sized medical testing instruments.
Telecom & Network Equipment: Heat dissipation for switches, compact communication enclosures and network server chassis; gateways and embedded communication devices.
Office & 3D Printing: Heat dissipation for power boards of laser printers and copiers; overall heat dissipation for industrial-grade 3D printers.
Home Appliances & Others: Electronic-control cooling for air purifiers and fitness-equipment control cabinets; chassis heat dissipation for vending machines, test instruments and laser engraving machines.

For JE9225EC medical-instrument applications, a silent version is preferred.

92MM EC AXIAL FAN · AC POWER

JE9225EC — 92 × 92 × 25 mm

JE9225EC is a 92mm electronically commutated axial fan with 115 VAC and 230 VAC configurations at 50/60 Hz. It delivers up to 56.0 CFM airflow and 4.05 mmH₂O static pressure at 2,600 RPM, with 4.5 W rated input power.

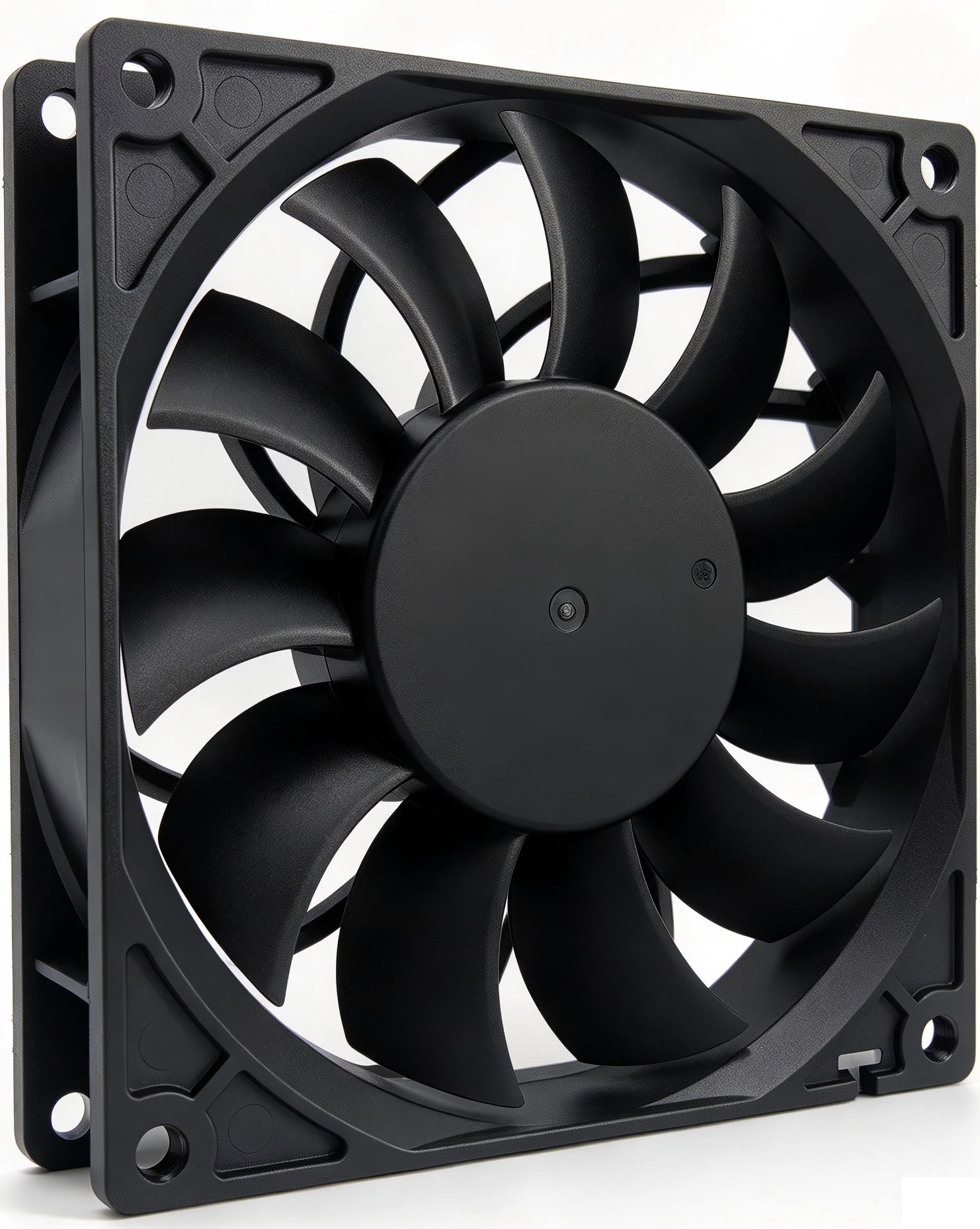

JE9225EC 92 by 92 by 25 mm EC axial fan product photo — JE9225EC EC axial fan.

General specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0.
Bearing system: Ball or sleeve bearing.
Life expectancy: 30,000 hours (Sleeve) / 50,000 hours (Ball), continuous operation at 25°C and 65% RH.
Weight: 102 g.

Available functions

Motor protection: RP, SS, LP, CL and OVP.
Signal outputs: FG, RD, RDB and LD.
Speed control modes: PWM, TC, VC, CC and CS.

Confirm function availability for the selected configuration before ordering.

Dimensions & performance

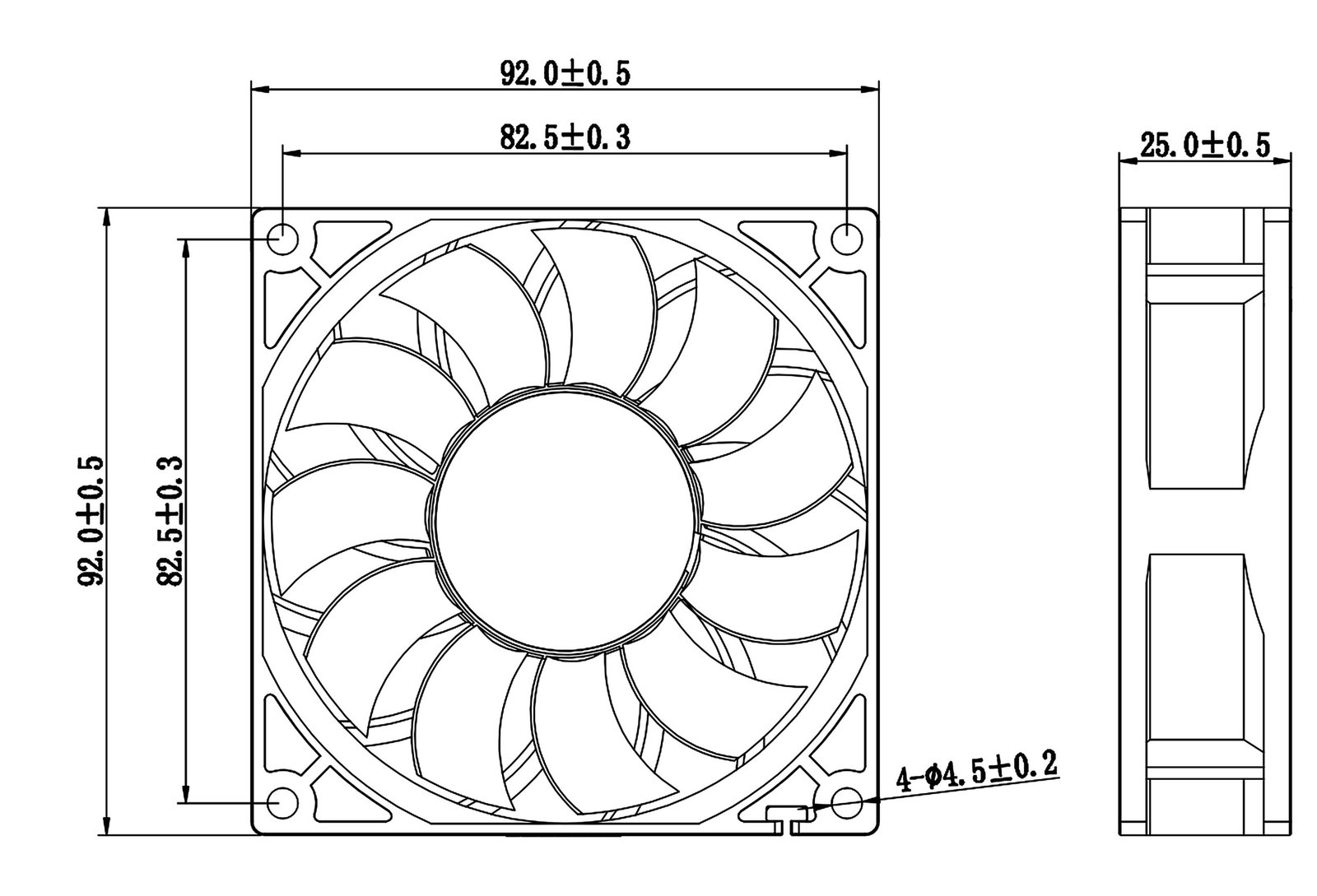

JE9225EC mechanical dimension drawing with mounting holes and tolerances — 92 × 92 × 25 mm mechanical drawing; dimensions and tolerances in mm.

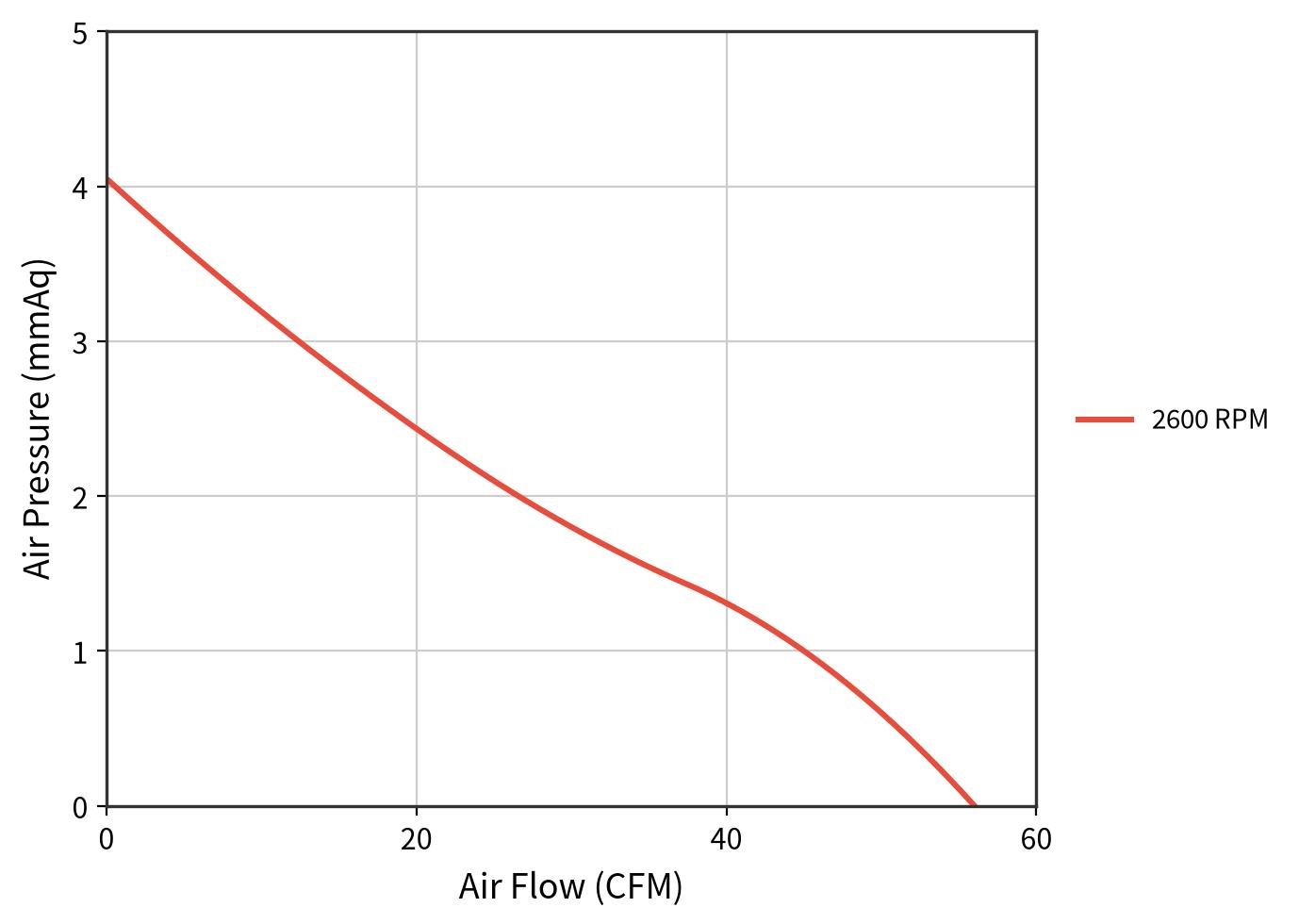

JE9225EC airflow and static pressure curve at 2,600 RPM — Airflow – static pressure curve at 2,600 RPM.

Performance data

JE9225EC electrical configurations.
Model	Rated voltage	Operating voltage range	Frequency	Rated input power	Speed	Max. airflow	Max. static pressure	Noise
JE9225M110	115 VAC	80–135 VAC	50/60 Hz	4.5 W	2,600 RPM	56.0 CFM	4.05 mmH₂O	35.0 dB(A)
JE9225M220	230 VAC	180–265 VAC	50/60 Hz	4.5 W	2,600 RPM	56.0 CFM	4.05 mmH₂O	35.0 dB(A)

92MM EC AXIAL FAN · AC POWER

JE9238EC — 92 × 92 × 38 mm

JE9238EC is a 92mm electronically commutated axial fan with 115 VAC and 230 VAC configurations at 50/60 Hz. It delivers up to 86.38 CFM airflow and 12.76 mmH₂O static pressure at 4,500 RPM, with 11.0 W rated input power.

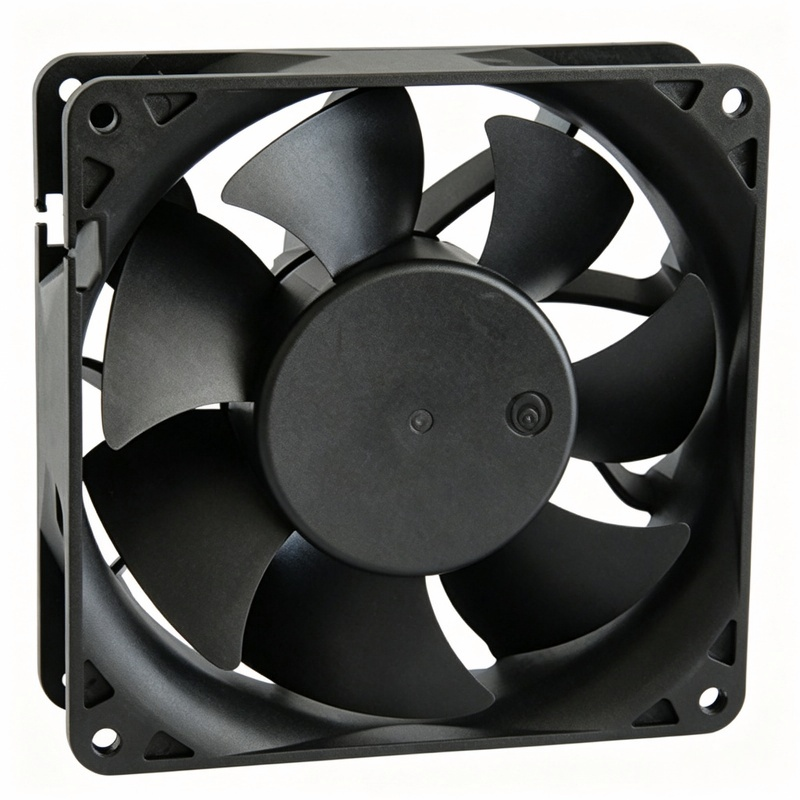

JE9238EC 92 by 92 by 38 mm EC axial fan product photo — JE9238EC EC axial fan.

General specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0.
Bearing system: Ball or sleeve bearing.
Life expectancy: 30,000 hours (Sleeve) / 50,000 hours (Ball), continuous operation at 25°C and 65% RH.
Weight: 202 g.

Available functions

Motor protection: RP, SS, LP, CL and OVP.
Signal outputs: FG, RD, RDB and LD.
Speed control modes: PWM, TC, VC, CC and CS.

Confirm function availability for the selected configuration before ordering.

Dimensions & performance

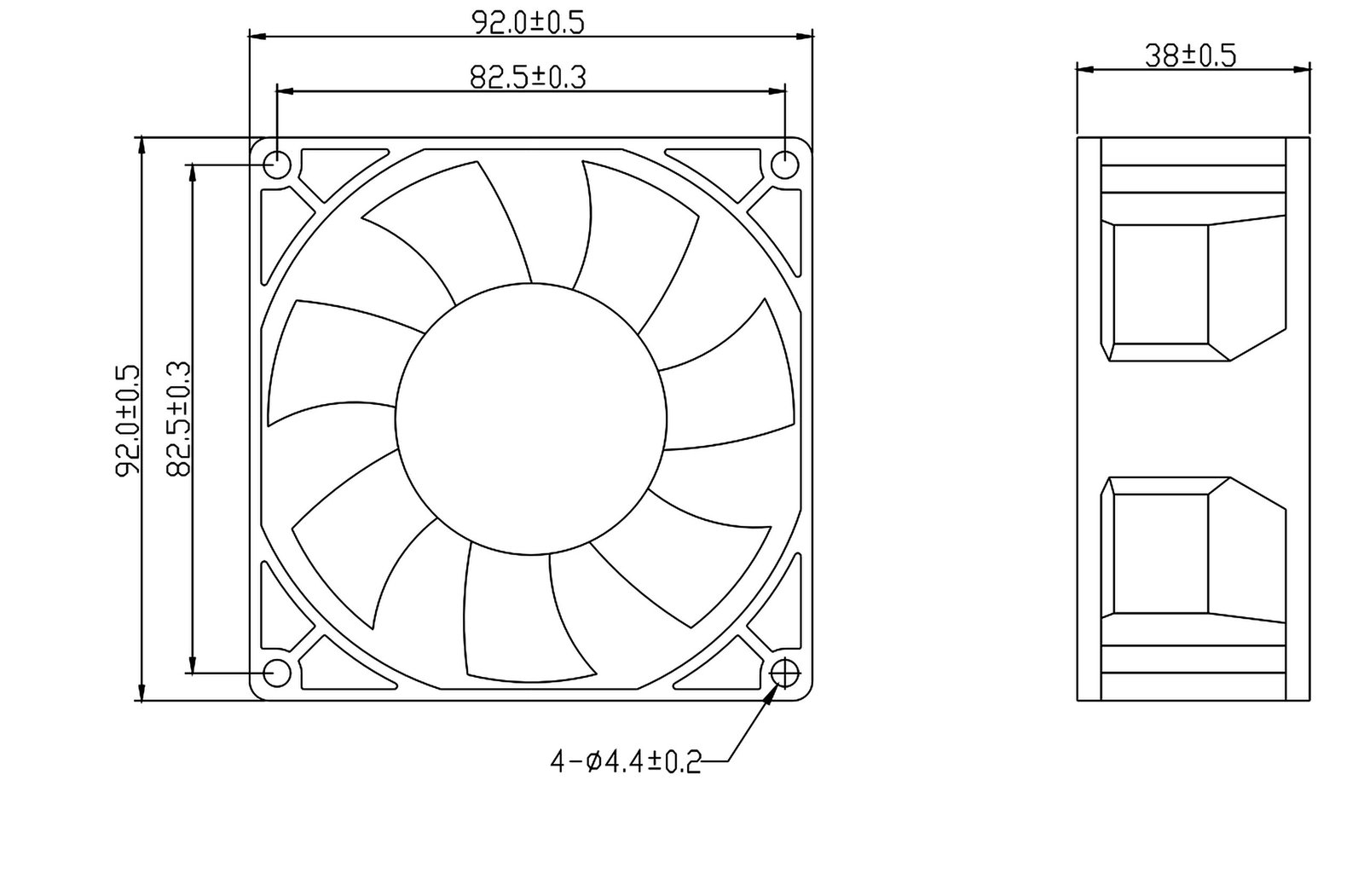

JE9238EC mechanical dimension drawing with mounting holes and tolerances — 92 × 92 × 38 mm mechanical drawing; dimensions and tolerances in mm.

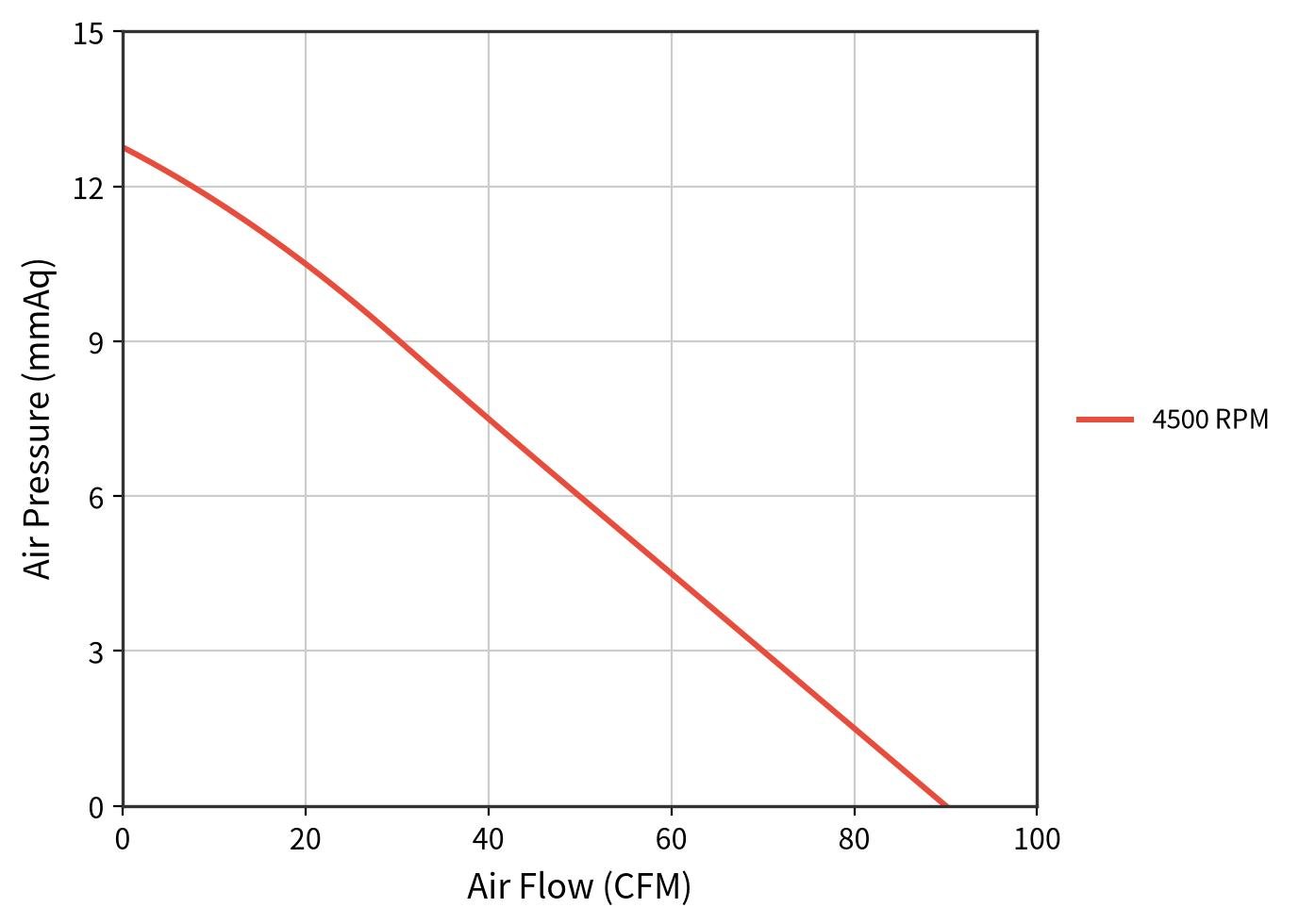

JE9238EC airflow and static pressure curve at 4,500 RPM — Airflow – static pressure curve at 4,500 RPM.

Performance data

JE9238EC electrical configurations.
Model	Rated voltage	Operating voltage range	Frequency	Rated input power	Speed	Max. airflow	Max. static pressure	Noise
JE9238H110	115 VAC	80–135 VAC	50/60 Hz	11.0 W	4,500 RPM	86.38 CFM	12.76 mmH₂O	56.0 dB(A)
JE9238H220	230 VAC	180–265 VAC	50/60 Hz	11.0 W	4,500 RPM	86.38 CFM	12.76 mmH₂O	56.0 dB(A)

Specify your JE92 EC fan.

Share AC supply voltage, airflow, static pressure, space constraints, quantity and control requirements.

Request a quote →
