JE200 — 200mm EC axial cooling fan

Explore the JE20060EC 200 × 200 × 60 mm EC axial fan for 115 or 230 VAC equipment cooling, with specifications, mechanical drawings, airflow curves and a downloadable datasheet.

Model selection

Specification	JE200 series
Family	JE200 EC axial fan
Model series	JE20060EC
Size	200 × 200 × 60 mm
Power supply	115 / 230 VAC, 50 / 60 Hz
Frame / impeller	Aluminum frame / Thermoplastic PBT impeller, UL 94V-0
Bearing system	Two ball bearings
Life expectancy	50,000 hours continuous operation at 25°C and 65% RH

Request the right configuration

Include AC supply voltage, required airflow, static pressure, quantity and control requirements.

Inquire about JE20060EC

Typical Applications

JE20060EC provides ventilation and cooling for industrial equipment, power systems and large enclosures.

Industrial Automation: Heat dissipation for high-power frequency converters and heavy-duty servo drives; ventilation for large industrial control cabinets and electrical enclosure systems.
Welding & Power Supplies: Cooling for heavy welding equipment and high-power industrial switching power supplies (large airflow and high static pressure for high-heat-generation devices).
New Energy & Power: Cooling for high-power charging modules and DC charging piles; ventilation and heat dissipation for central PV inverters and energy-storage battery cabinets with BMS; large-capacity UPS systems and outdoor power control cabinets.
Commercial Refrigeration & HVAC: Condenser cooling for commercial cold-storage units; air circulation for extra-large refrigerated display cabinets; ventilation for air-handling units, industrial air-conditioning and drying systems.
Lighting & Stage Equipment: Heat dissipation for large-size high-power LED screen cabinets; cooling for heavy-duty professional stage lighting systems.
Telecommunication & Data Center: Ventilation cooling for server racks, big network equipment cabinets and outdoor communication base-station enclosures.
Medical Equipment: Thermal dissipation for large-scale medical analytical instruments and laboratory test equipment.
Other Industrial Applications: Ventilation for environmental test chambers, industrial oven equipment and large-size industrial drying facilities.

200MM EC AXIAL FAN · AC POWER

JE20060EC — 200 × 200 × 60 mm

JE20060EC is a 200mm EC axial fan with an aluminum frame and two ball bearings. Six 115 VAC and 230 VAC configurations operate at 50/60 Hz, with 2,000, 2,500 and 3,000 RPM options. Maximum airflow reaches 492.4 CFM and maximum static pressure reaches 22.7 mmH₂O.

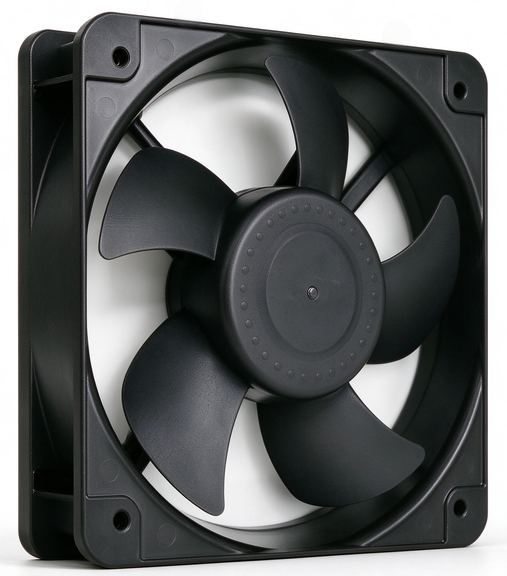

JE20060EC 200 by 200 by 60 mm EC axial fan product photo — JE20060EC EC axial fan.

General specifications

Frame: Aluminum.
Impeller: Thermoplastic PBT, UL 94V-0.
Bearing system: Two ball bearings.
Life expectancy: 50,000 hours continuous operation at 25°C and 65% RH.
Weight: 2,800 g.

Available functions

Motor protection: RP ○, SS ●, LP ●, CL ●, OVP ○.
Signal outputs: FG ●, RD ●, RDB ●, LD ●.
Speed control modes: PWM ●, TC ●, VC ●, CC ●, CS ●.

Function markers match the datasheet. Confirm function availability for the selected configuration before ordering.

Dimensions & performance

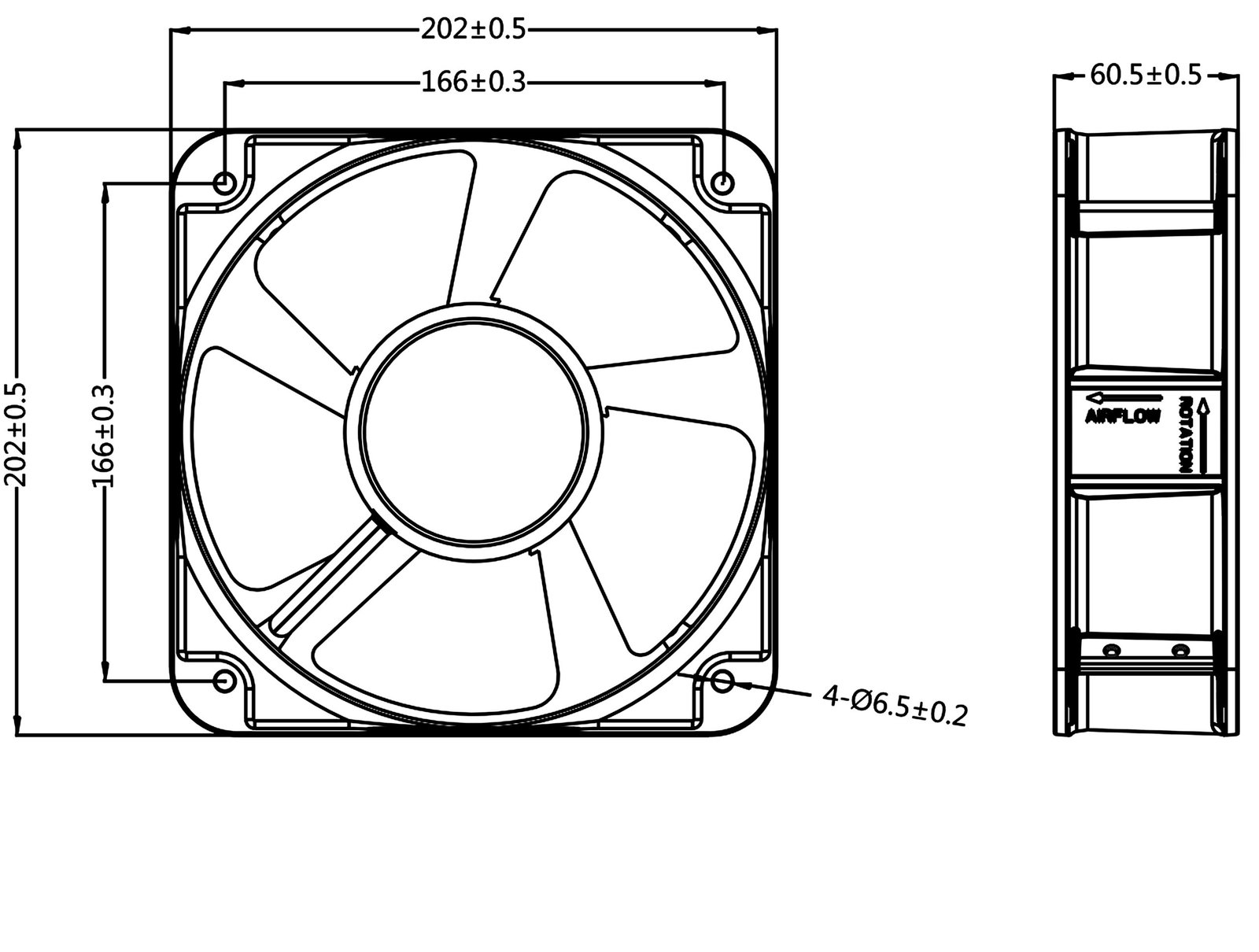

JE20060EC mechanical drawing with dimensions and mounting positions — Series size: 200 × 200 × 60 mm. Drawing outlines: 202 ± 0.5 × 202 ± 0.5 × 60.5 ± 0.5 mm; mounting dimensions and tolerances as shown. Confirm installation dimensions before ordering.

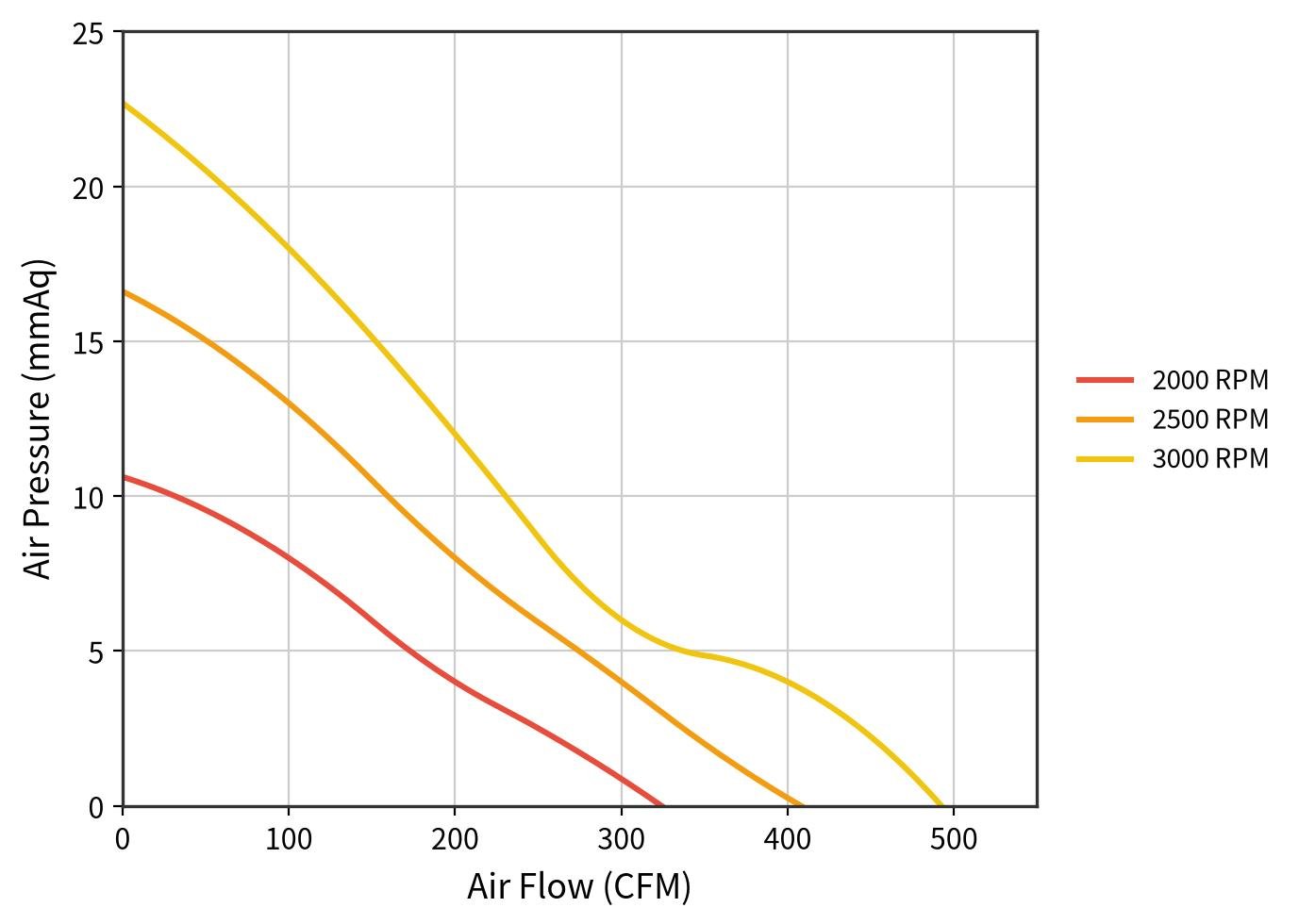

JE20060EC airflow and static pressure curve at 2,000, 2,500 and 3,000 RPM — Airflow – static pressure curve at 2,000, 2,500 and 3,000 RPM.

Performance data

JE20060EC electrical configurations.
Model	Rated voltage	Operating voltage range	Frequency	Rated input power	Speed	Max. airflow	Max. static pressure	Noise
JE20060L110	115 VAC	80–135 VAC	50/60 Hz	40.0 W	2,000 RPM	324.0 CFM	10.6 mmH₂O	58.6 dB(A)
JE20060L220	230 VAC	180–265 VAC	50/60 Hz	40.0 W	2,000 RPM	324.0 CFM	10.6 mmH₂O	58.6 dB(A)
JE20060M110	115 VAC	80–135 VAC	50/60 Hz	50.0 W	2,500 RPM	407.9 CFM	16.6 mmH₂O	62.4 dB(A)
JE20060M220	230 VAC	180–265 VAC	50/60 Hz	50.0 W	2,500 RPM	407.9 CFM	16.6 mmH₂O	62.4 dB(A)
JE20060H110	115 VAC	80–135 VAC	50/60 Hz	70.0 W	3,000 RPM	492.4 CFM	22.7 mmH₂O	68.5 dB(A)
JE20060H220	230 VAC	180–265 VAC	50/60 Hz	70.0 W	3,000 RPM	492.4 CFM	22.7 mmH₂O	68.5 dB(A)
