AC POWER · EC axial fans

JE80 — 80mm EC axial cooling fans

Compare JE8025EC 80 × 80 × 25 mm and JE8038EC 80 × 80 × 38 mm EC fans for 115 or 230 VAC equipment cooling. Explore electrical configurations, mechanical drawings, airflow curves and downloadable datasheets.

Model selection

Specification	JE80 series
Family	JE80 EC axial fans
Model series	JE8025EC / JE8038EC
Sizes	80 × 80 × 25 mm / 80 × 80 × 38 mm
Power supply	115 / 230 VAC, 50 / 60 Hz
Frame / impeller	Thermoplastic PBT, UL 94V-0
Bearing system	Ball or sleeve bearing
Life expectancy	30,000 hrs (Sleeve) / 50,000 hrs (Ball), continuous operation at 25°C, 65% RH

Request the right configuration

Include AC supply voltage, required airflow, static pressure, quantity and control requirements.

Inquire about JE8025EC Inquire about JE8038EC

Typical Applications

JE8025EC and JE8038EC EC fans are suited to compact equipment ventilation and power-electronics cooling in the following applications.

Frequency Converters & Servo Drives: Heat dissipation for internal power modules of industrial drivers.
Electrical Control Cabinets: Internal ventilation and heat dissipation for distribution boxes and PLC cabinets.
Welding & Power Supplies: Welding equipment, small industrial power supplies and switching power supplies.
3D Printers & Industrial Controllers: 3D printers, small industrial controllers and industrial PCs (IPC).
New Energy & Power: Small charging-pile modules, on-board chargers (OBC), PV inverters, BMS battery cabinets and UPS systems.
Lighting & Stage Equipment: High-power LED power supplies and control cabinets, moving-head stage lights and laser lights.
Medical Equipment: Cabinet ventilation for small analyzers and monitoring devices; a silent version is preferred.
Telecom & Network Equipment: Switch enclosures, compact communication cabinets and network-device power supplies.
Home Appliances & Air Handling: Air purifiers, small drying equipment and electrical control cabinets for fitness equipment.
Office Equipment: Heat dissipation for internal power boards of laser printers and photocopiers.

80MM EC AXIAL FAN · AC POWER

JE8025EC — 80 × 80 × 25 mm

JE8025EC is an 80mm electronically commutated axial fan with 115 VAC and 230 VAC configurations at 50/60 Hz. It delivers up to 40.2 CFM airflow and 4.57 mmH₂O static pressure at 3,000 RPM, with 4.0 W rated input power.

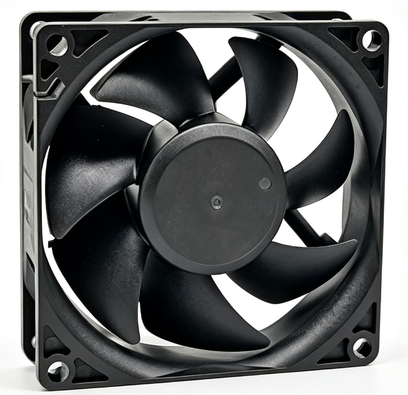

JE8025EC 80 by 80 by 25 mm EC axial fan product photo — JE8025EC EC axial fan.

General specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0.
Bearing system: Ball or sleeve bearing.
Life expectancy: 30,000 hours (Sleeve) / 50,000 hours (Ball), continuous operation at 25°C and 65% RH.
Weight: 78 g.

Available functions

Motor protection: RP, SS, LP, CL and OVP.
Signal outputs: FG, RD, RDB and LD.
Speed control modes: PWM, TC, VC, CC and CS.

Confirm function availability for the selected configuration before ordering.

Dimensions & performance

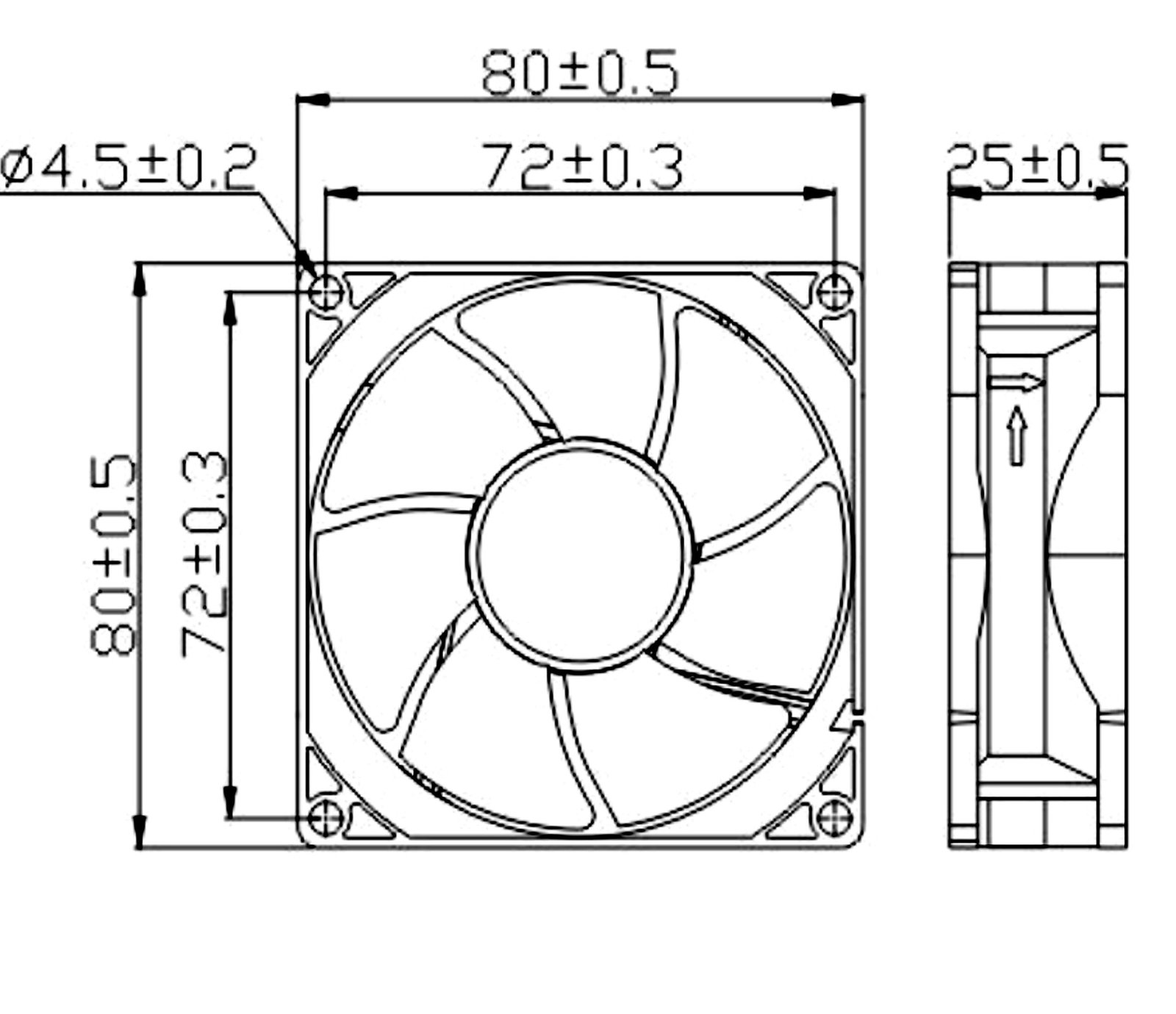

JE8025EC mechanical dimension drawing with mounting holes and tolerances — 80 × 80 × 25 mm mechanical drawing; dimensions and tolerances in mm.

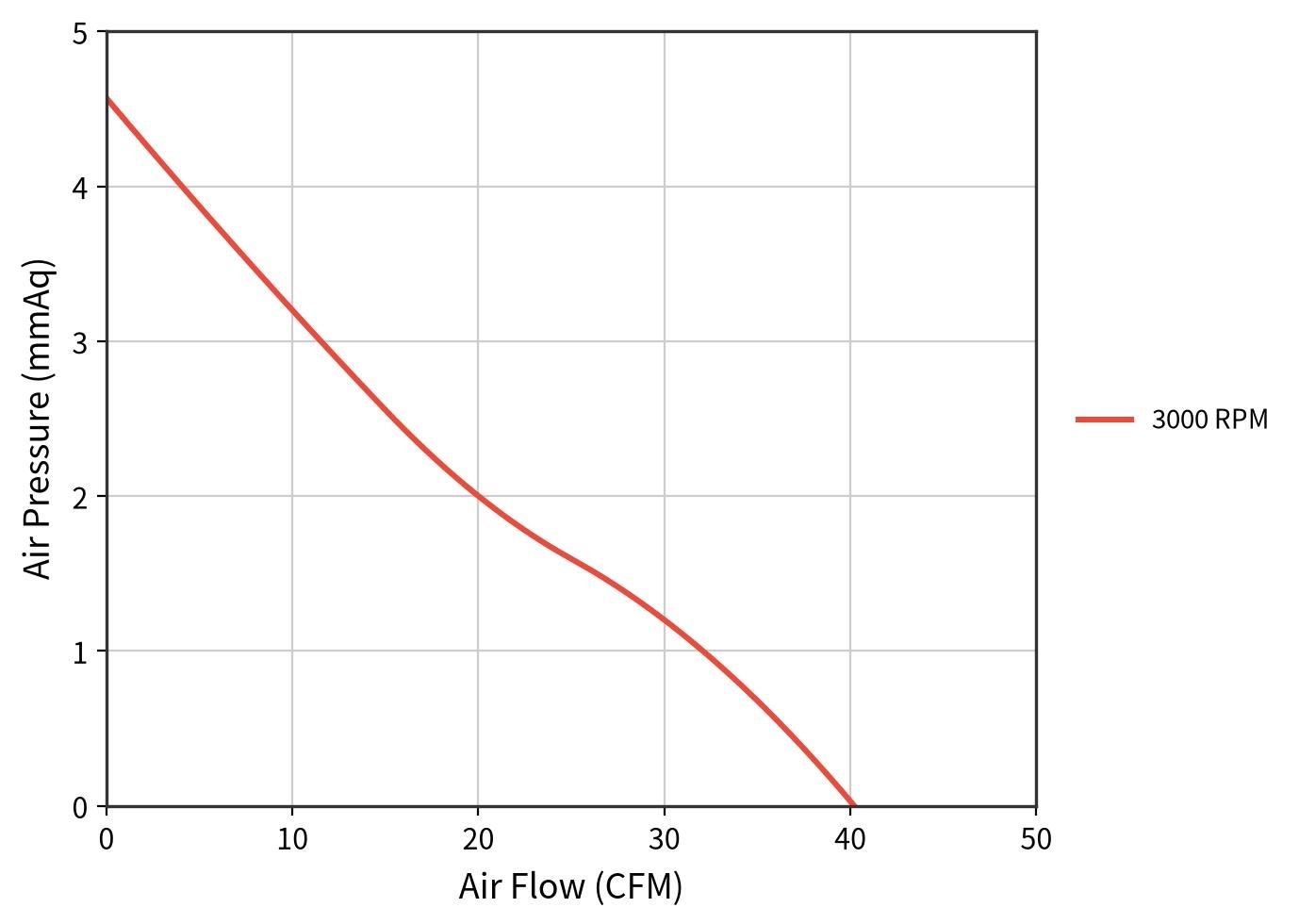

JE8025EC airflow and static pressure curve at 3,000 RPM — Airflow – static pressure curve at 3,000 RPM.

Performance data

JE8025EC electrical configurations.
Model	Rated voltage	Operating voltage range	Frequency	Rated input power	Speed	Max. airflow	Max. static pressure	Noise
JE8025M110	115 VAC	80–135 VAC	50/60 Hz	4.0 W	3,000 RPM	40.2 CFM	4.57 mmH₂O	38.5 dB(A)
JE8025M220	230 VAC	180–265 VAC	50/60 Hz	4.0 W	3,000 RPM	40.2 CFM	4.57 mmH₂O	38.5 dB(A)

80MM EC AXIAL FAN · AC POWER

JE8038EC — 80 × 80 × 38 mm

JE8038EC is an 80mm electronically commutated axial fan with 115 VAC and 230 VAC configurations at 50/60 Hz. It delivers up to 62.3 CFM airflow and 13.6 mmH₂O static pressure at 5,000 RPM, with 9.0 W rated input power.

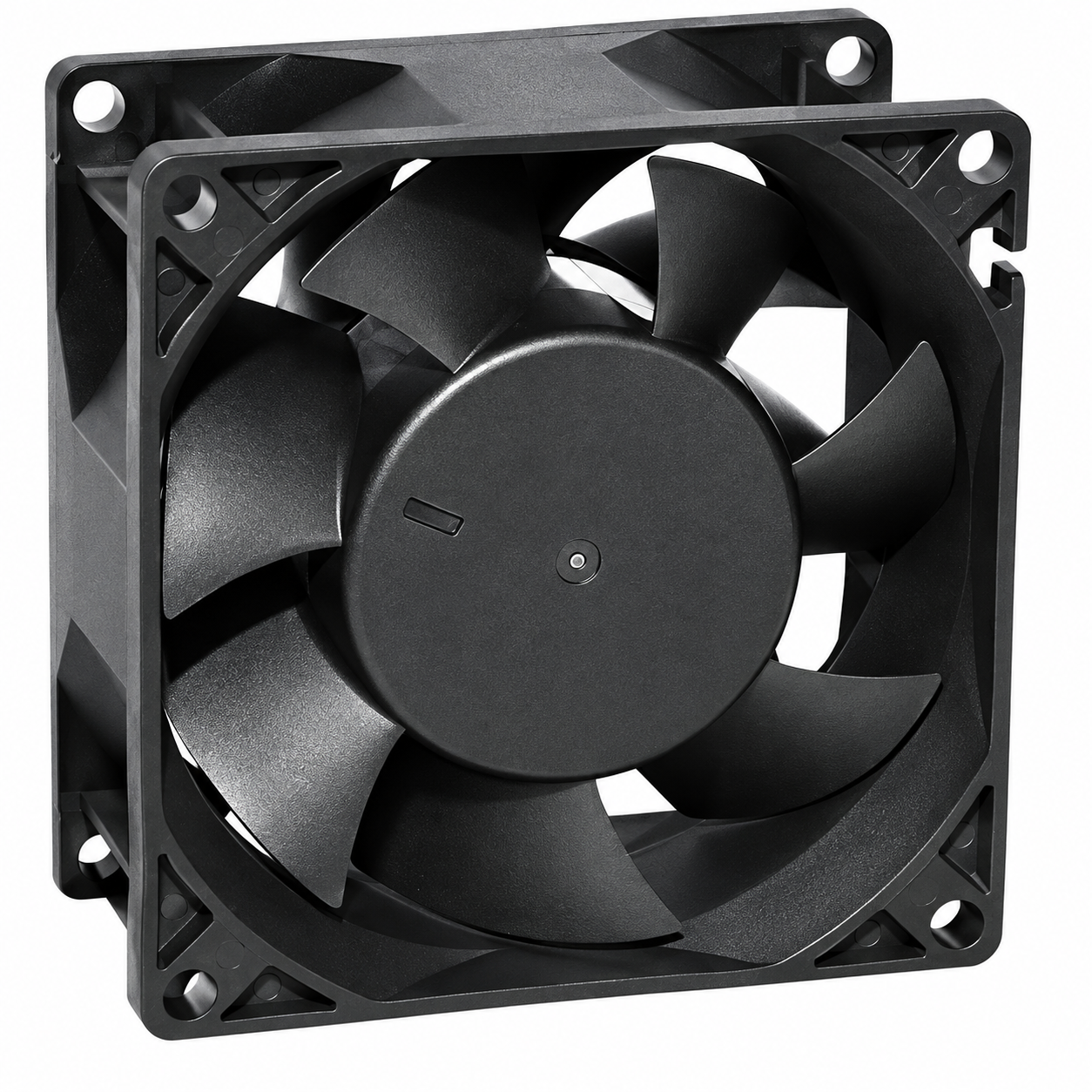

JE8038EC 80 by 80 by 38 mm EC axial fan product photo — JE8038EC EC axial fan.

General specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0.
Bearing system: Ball or sleeve bearing.
Life expectancy: 30,000 hours (Sleeve) / 50,000 hours (Ball), continuous operation at 25°C and 65% RH.
Weight: 177.6 g.

Available functions

Motor protection: RP, SS, LP, CL and OVP.
Signal outputs: FG, RD, RDB and LD.
Speed control modes: PWM, TC, VC, CC and CS.

Confirm function availability for the selected configuration before ordering.

Dimensions & performance

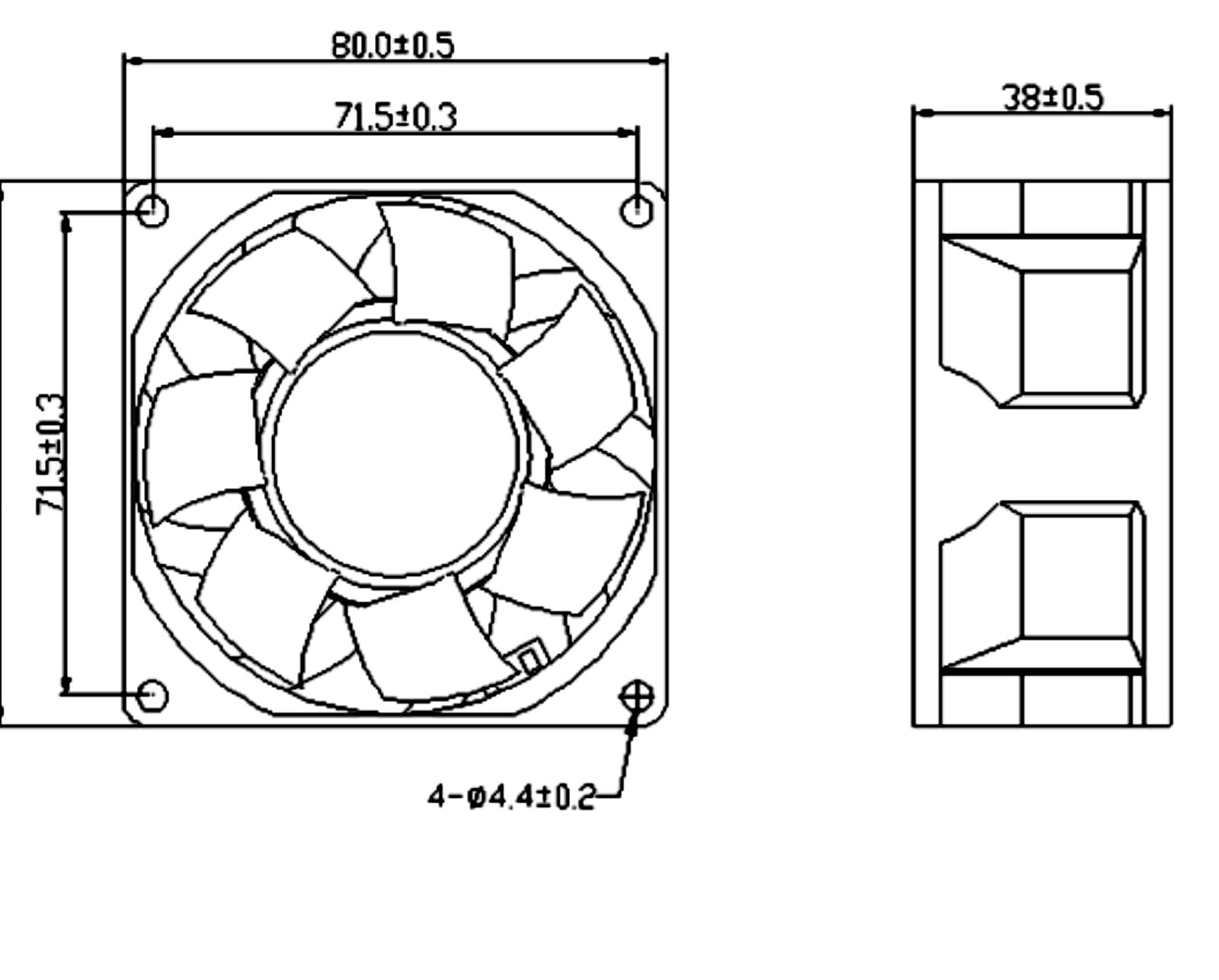

JE8038EC mechanical dimension drawing with mounting holes and tolerances — 80 × 80 × 38 mm mechanical drawing; dimensions and tolerances in mm.

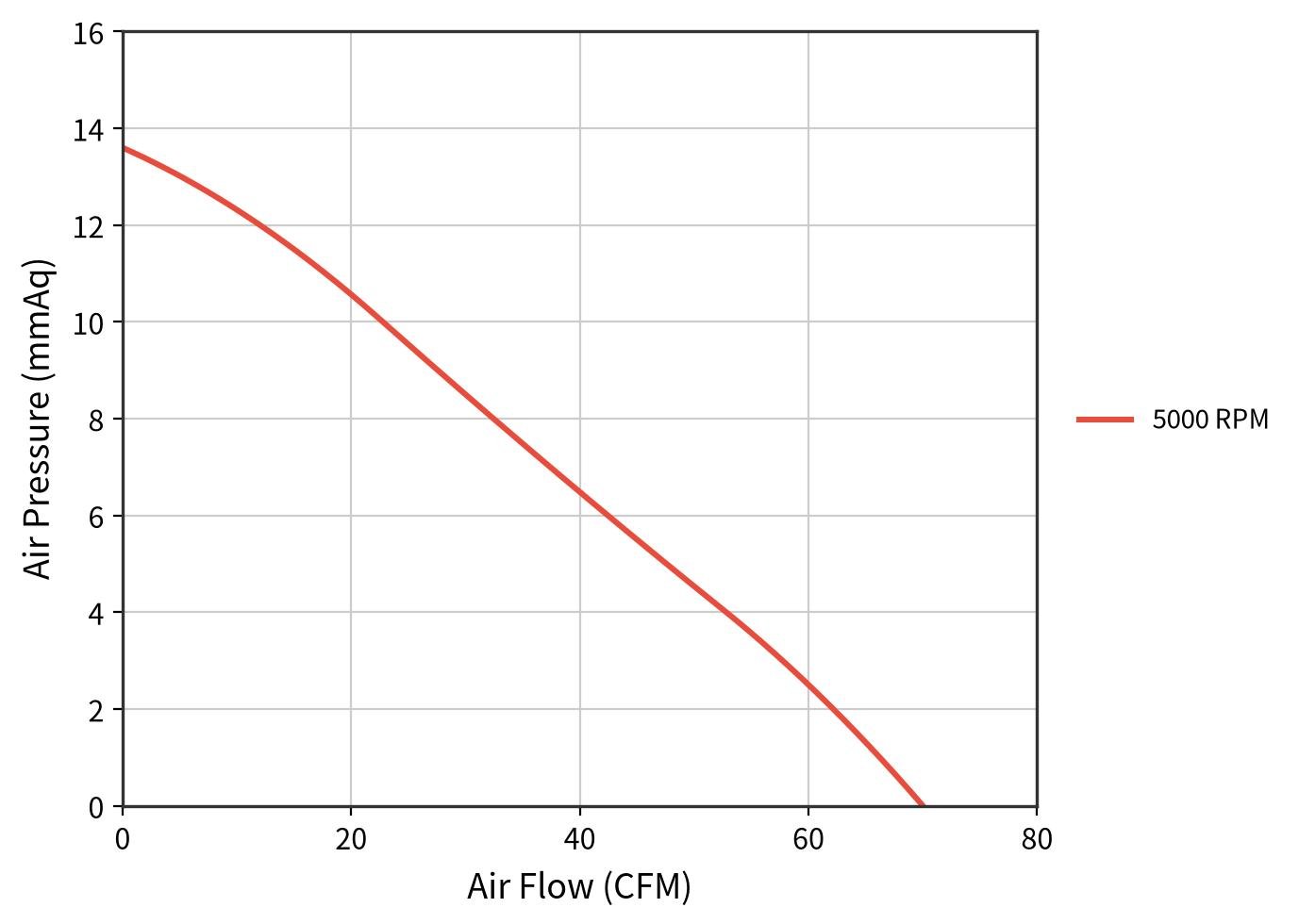

JE8038EC airflow and static pressure curve at 5,000 RPM — Airflow – static pressure curve at 5,000 RPM.

Performance data

JE8038EC electrical configurations.
Model	Rated voltage	Operating voltage range	Frequency	Rated input power	Speed	Max. airflow	Max. static pressure	Noise
JE8038H110	115 VAC	80–135 VAC	50/60 Hz	9.0 W	5,000 RPM	62.3 CFM	13.6 mmH₂O	52.1 dB(A)
JE8038H220	230 VAC	180–265 VAC	50/60 Hz	9.0 W	5,000 RPM	62.3 CFM	13.6 mmH₂O	52.1 dB(A)

Specify your JE80 EC fan.

Share AC supply voltage, airflow, static pressure, space constraints, quantity and control requirements.
