Manufacturing & quality
Built around production and verification.
JyFan combines manufacturing equipment, test systems and a quality management process to support cooling fan development and production.
Production capabilities
- 6 independent semi-automatic production lines
- Injection molding, welding, assembly and aging equipment
- 3,000 m² facility with space for up to 100 staff
- Daily capacity up to 30,000 fans, depending on product mix
- R&D, engineering, production and quality departments
Test equipment
- Airflow test systems with stated maximum capacities of 20, 350 and 2,000 CFM
- Acoustic test room
- Temperature cycling test system
- Drop and simulated transportation tests
- Salt-spray test system
These figures describe test equipment capacities, not the airflow ratings of individual fans.

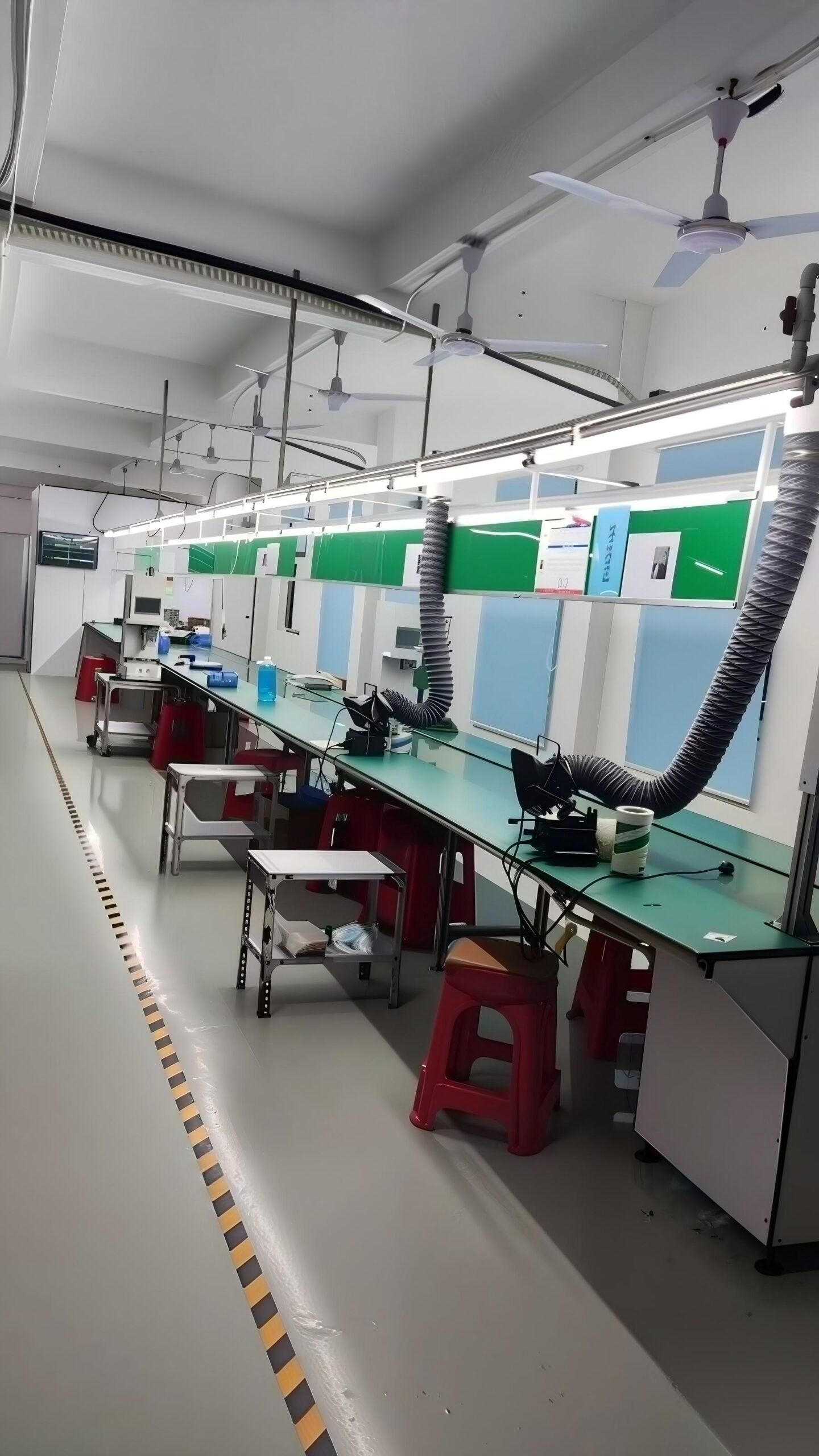

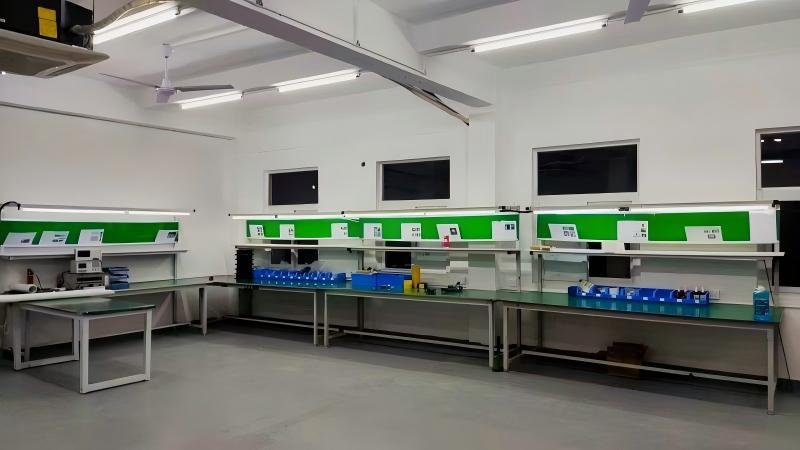

Workshop
Dedicated work areas for fan assembly.
Assembly workstations support the production of cooling-fan configurations selected for each order.
Production line
Automated assembly line.
View production-line operations used within JyFan manufacturing. Production arrangements, inspection requirements and lead times are confirmed for each order.
Automated assembly line at the JyFan facility.
AC fan assembly line at the JyFan facility.
Automatic winding machine used in JyFan motor-coil production.
Motor winding
Automatic winding machine.
View the automatic winding equipment used during motor-coil production. Winding requirements are set according to the selected fan configuration and verified through the applicable production and inspection process.
Packing & shipment preparation
Configured for the selected product and order.

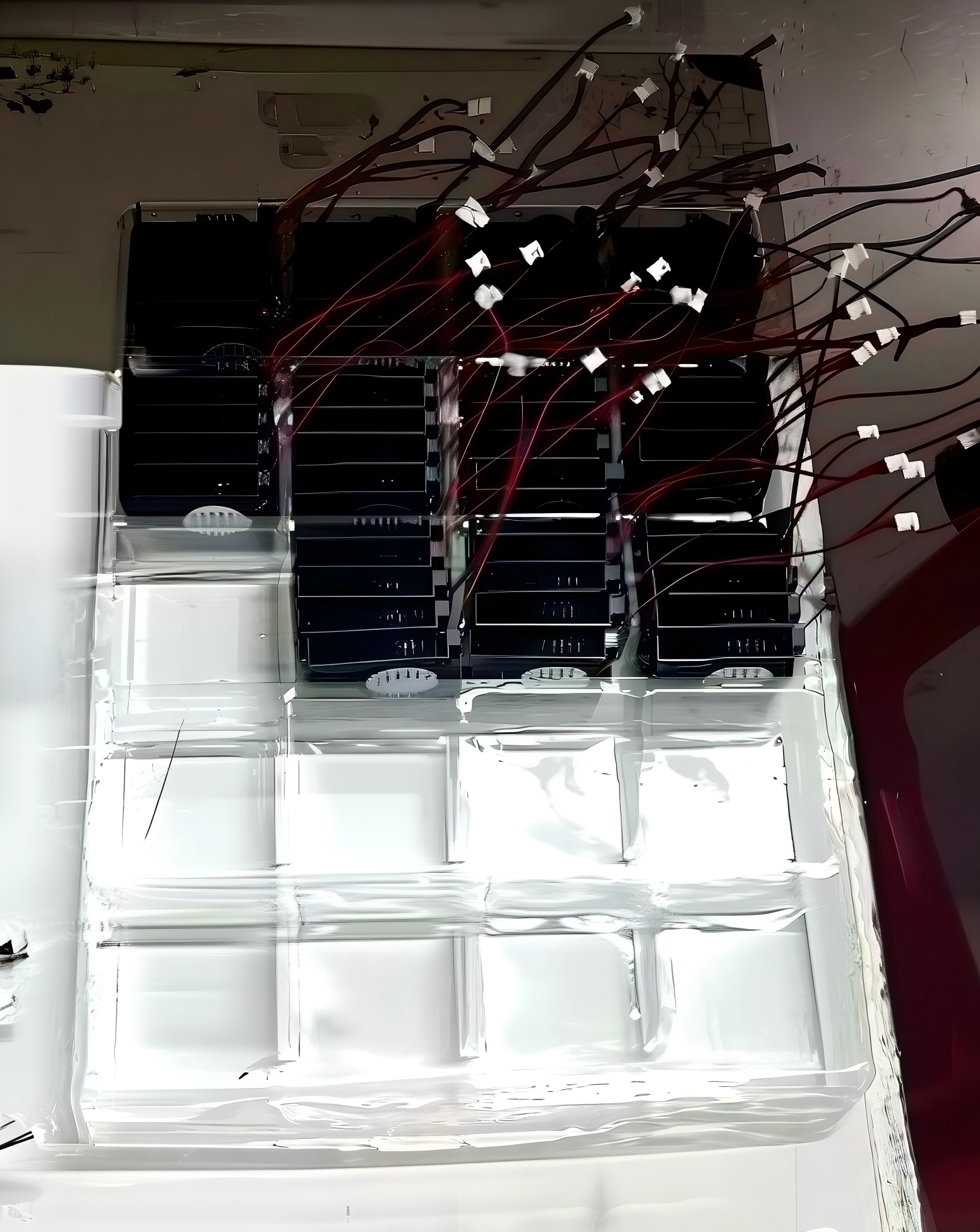

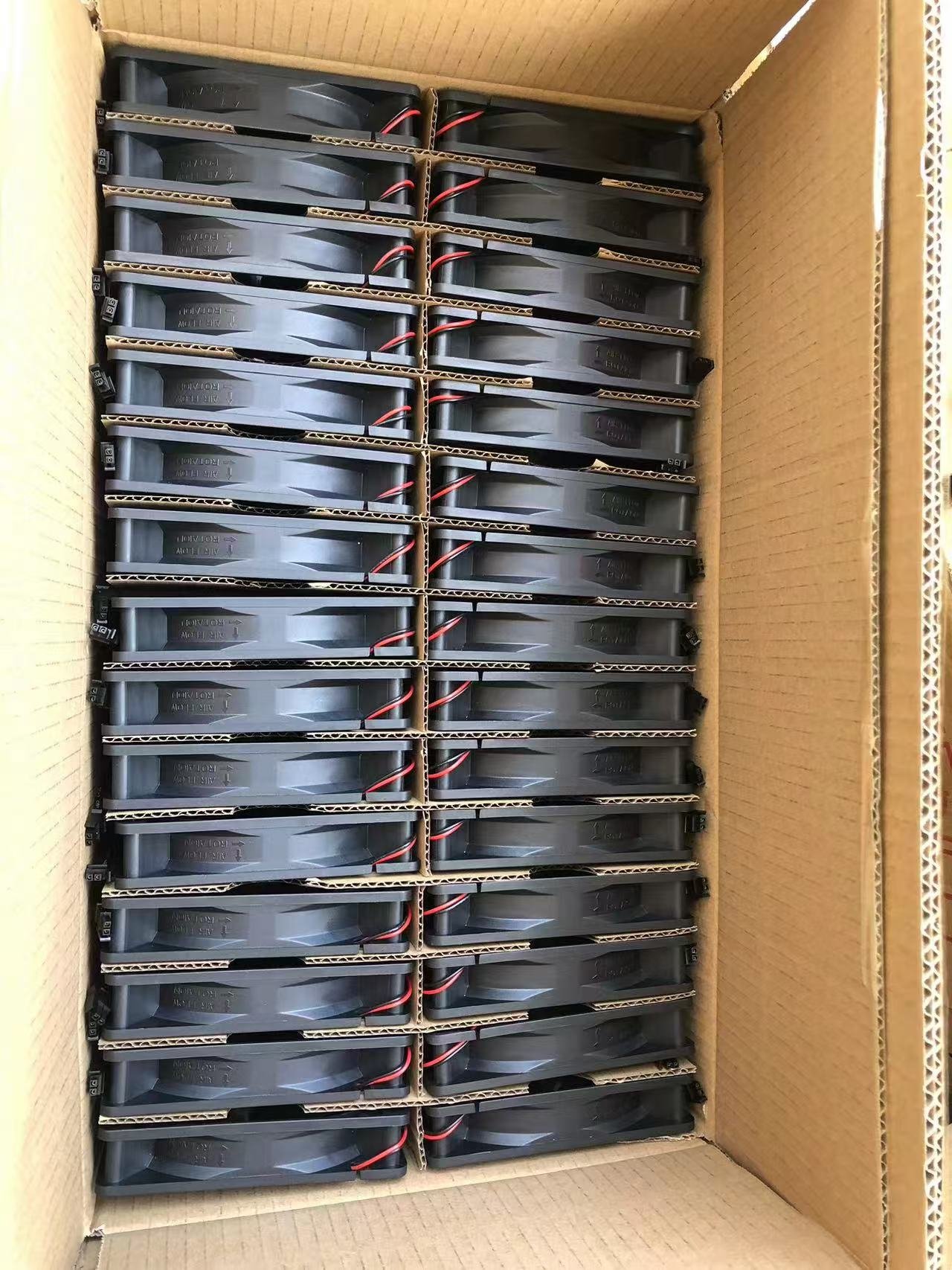

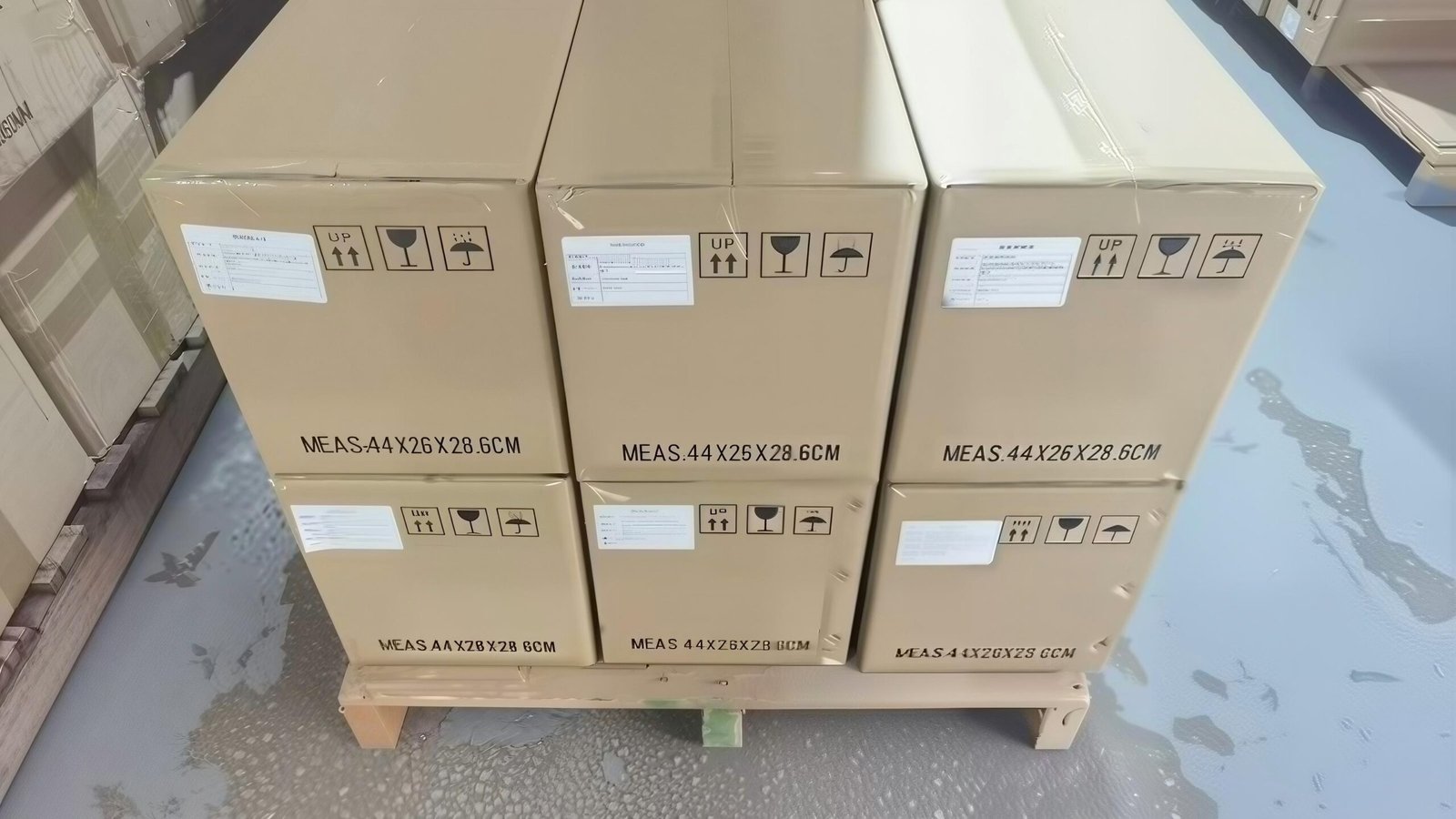

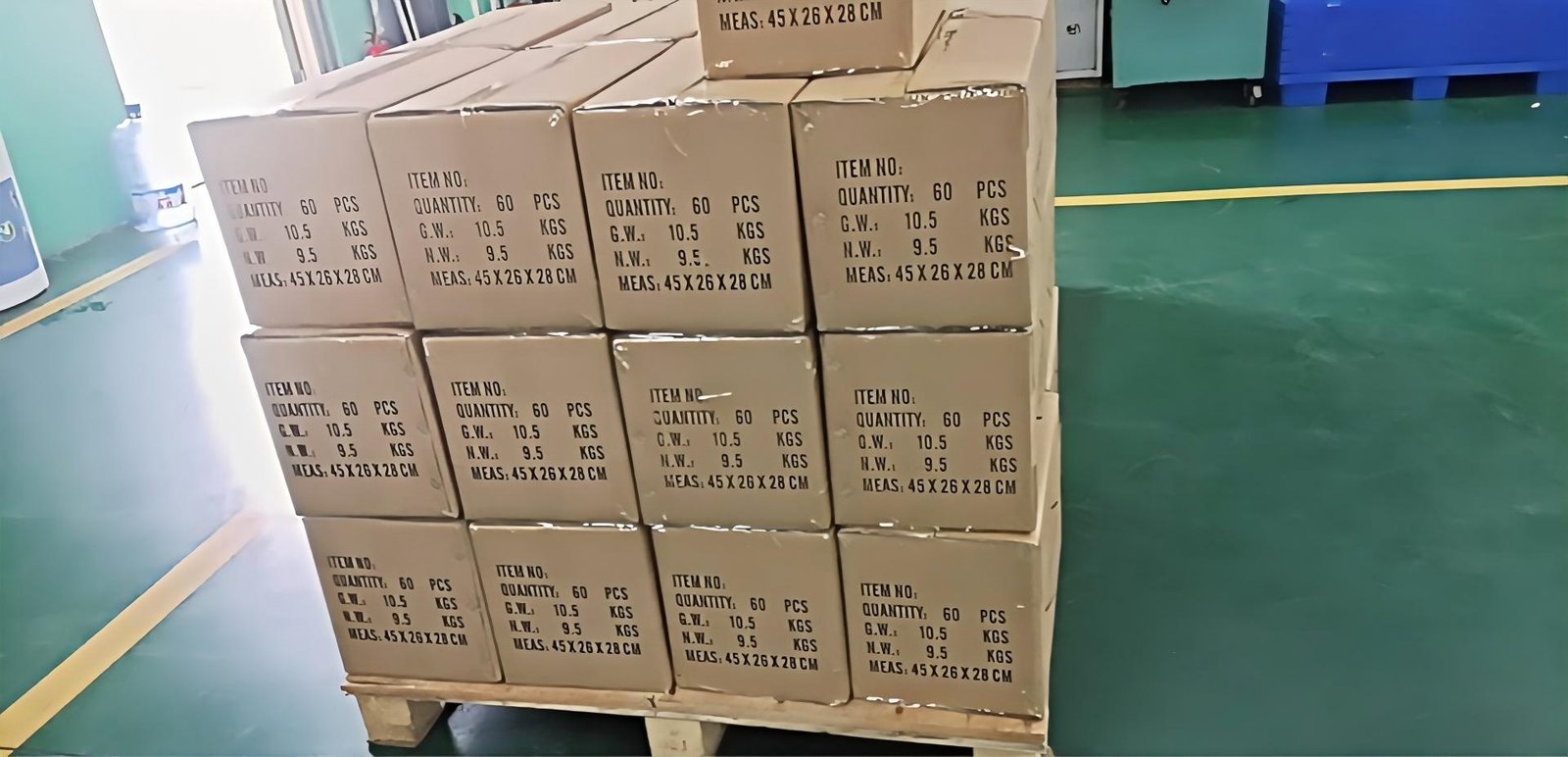

Examples of cooling-fan packing formats used for export preparation, including carton packing, palletized cartons and protective dividers.
Carton quantity, protective materials, labeling and pallet requirements are confirmed for the selected model, destination and order quantity.
Airflow testing
Airflow verification in operation.
View a JyFan airflow test operation. Airflow requirements, test conditions and reported performance are reviewed for the selected model and configuration.
Test setup and results are model-specific. Request the applicable data for your product selection.
Acoustic testing
Noise measurement in operation.
View a JyFan acoustic test operation. Noise limits, measurement conditions and performance data are reviewed for the selected model and configuration.
Noise data are model-specific and depend on the applicable test conditions. Request the relevant data for your product selection.
Function testing
Automatic restart verification.
View an automatic restart function test. Functional requirements and test conditions are confirmed for the selected model and configuration.
Test results apply to the tested configuration. Request the applicable information for your product selection.
Product compliance documentation
Available documents identify specific product models or tested samples. Quote the complete model number when requesting the documentation for your order.
| Document | Reference / issue date | Documented scope |
|---|---|---|
| DC fan EMC test report | MTL25031403560E1 18 March 2025 | Shenzhen MTL Testing Technology Co., Ltd. reports PASS against EN 55032:2015+A11:2020 and EN 55035:2017+A11:2020. The report lists multiple DC fan models; its test-mode section identifies JF0923812HB at DC 12V, 2.65A. |
| AC fan LVD conformity certificate | TH20JC-135S 20 October 2020 | Shenzhen Tian Hai Test Technology Co., Ltd. lists specified JA-series AC fans under the Low Voltage Directive 2014/35/EU. Report reference: TH20JR-135S. Listed models include JA12025 and JA12038. |
| AC fan RoHS conformity certificate | C201027027001-1 12 November 2020 | Eurones (Dongguan) Consumer Products Testing Service Co., Ltd. identifies AC FAN JA12038 with additional listed model references. Supporting report: C201027027001. The certificate states that it is based on a single sample evaluation, not an assessment of all production. |
| DC blower RoHS verification report | A223005789710101 6 March 2023 | Centre Testing International Group Co., Ltd. reports PASS for the submitted DZF0501505L DC blower sample with reference to RoHS Directive 2011/65/EU and amendment (EU) 2015/863. |
Request documentation for your selected model
Send the full model number, supply voltage, intended market and required document type. Our team can review the available report, model coverage and supporting declaration for your configuration.
Test reports and laboratory conformity certificates support a technical documentation review. They are not a blanket approval of every product or application.
Start with your cooling requirements.
Share the size, voltage, airflow, operating conditions and quantity.
