Model:JF07010/JF07015/JF07020/JF07025

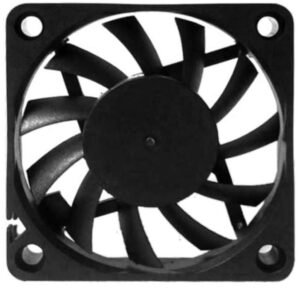

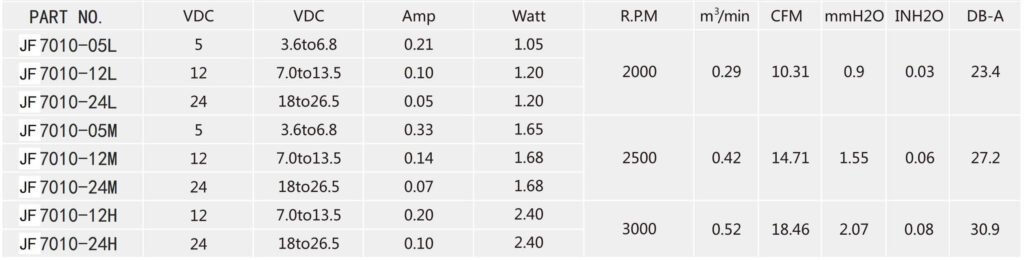

70X70X10mm SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 27.8g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

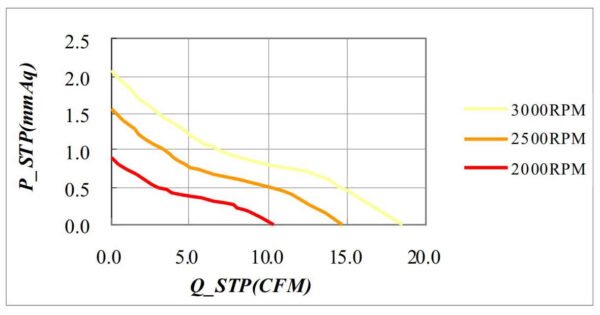

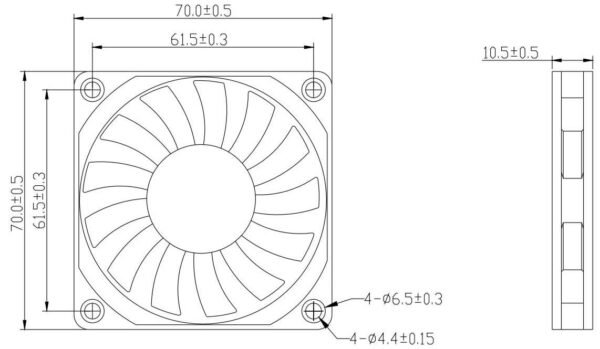

Dimensions Drawing and P&Q Curve
(Should none of our standard parameters meet your requirements, please feel free to contact us, We are ready to develop custom‑tailored products exclusively for you.)

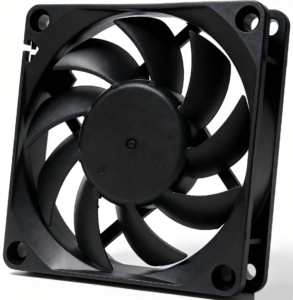

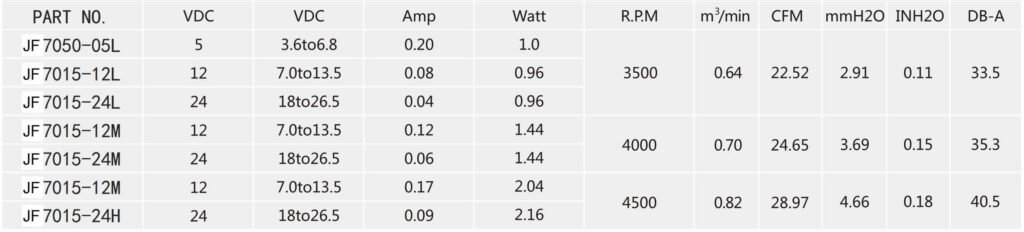

70X70X15mm SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 43.5g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

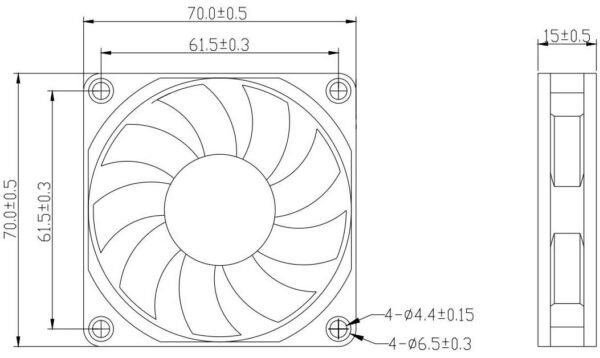

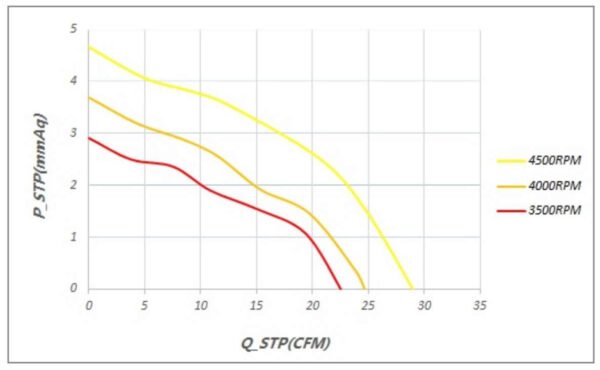

Dimensions Drawing and P&Q Curve
(Should none of our standard parameters meet your requirements, please feel free to contact us, We are ready to develop custom‑tailored products exclusively for you.)

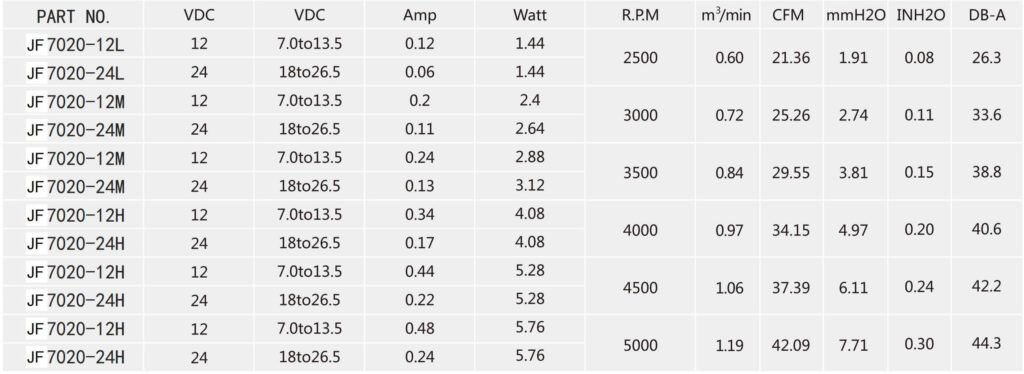

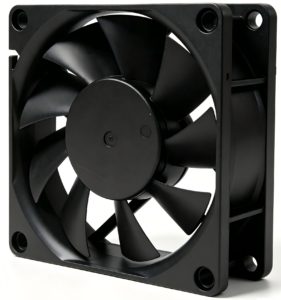

70X70X20mm SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 59g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

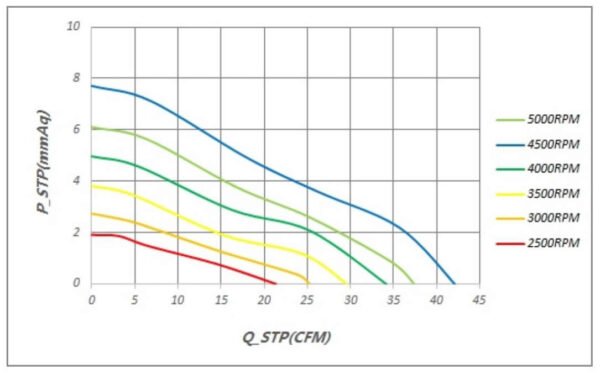

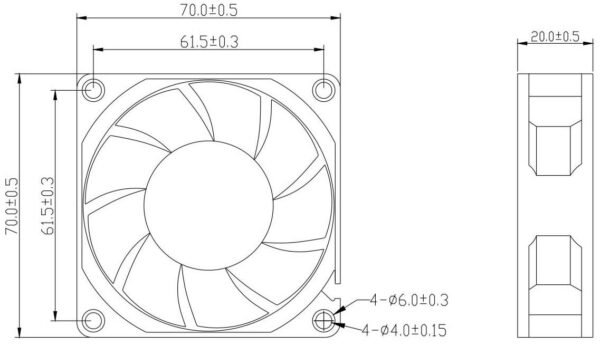

Dimensions Drawing and P&Q Curve
(Should none of our standard parameters meet your requirements, please feel free to contact us, We are ready to develop custom‑tailored products exclusively for you.)

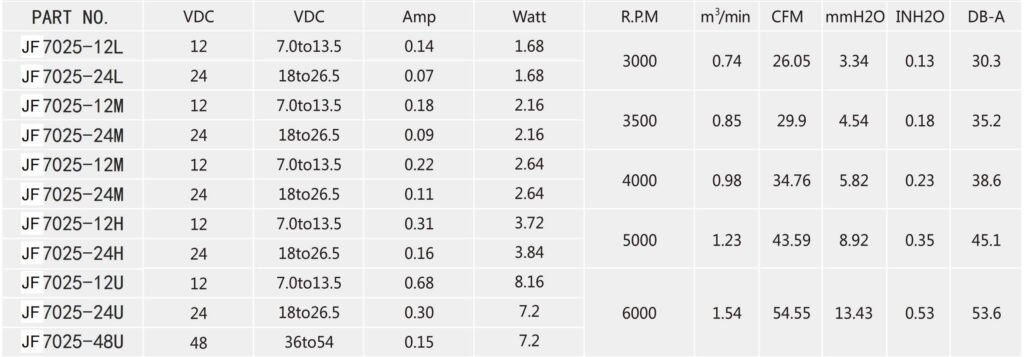

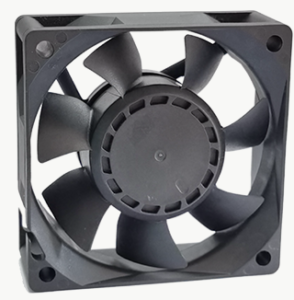

70X70X25mm SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 67.0g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

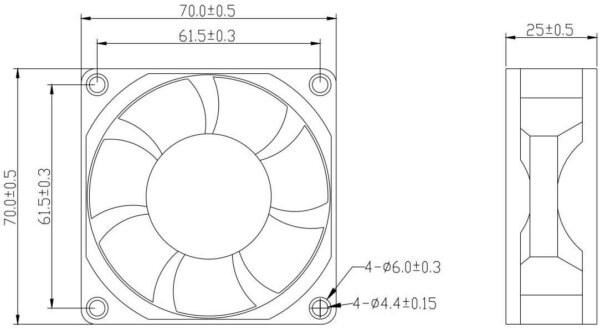

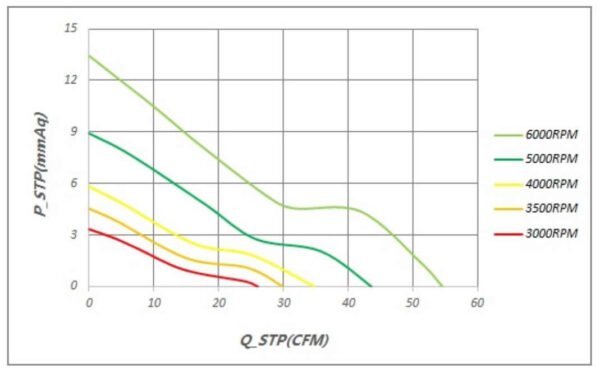

Dimensions Drawing and P&Q Curve
