Model:JF09225/JF9225（High‑Performance）
92X92X25mm SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 102g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

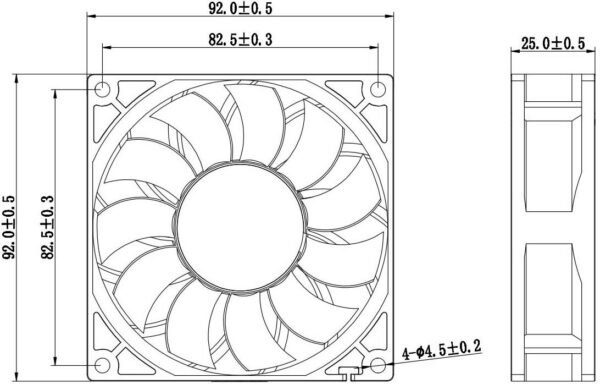

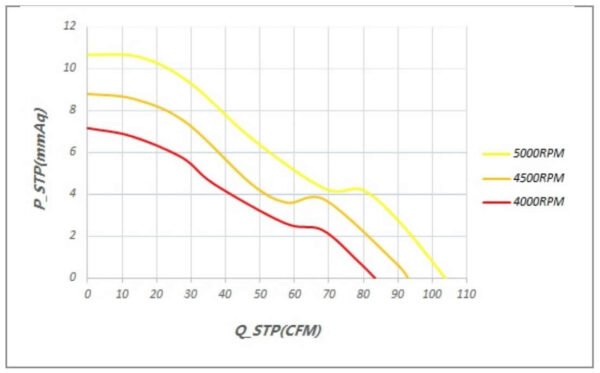

Dimensions Drawing and P&Q Curve
(Should none of our standard parameters meet your requirements, please feel free to contact us, We are ready to develop custom‑tailored products exclusively for you.)
92X92X25mm （High‑Performance）SERIES
Bearing Type: Ball bearing （or sleeve bearing）
Frame: PBT UL 94V-0
Imeller: PBT UL 94V-0
Weight: 117g
LIFE EXPECTANCY: 50,000 hrs(or 30,000 hrs) continuous operating under25℃ 65%RH

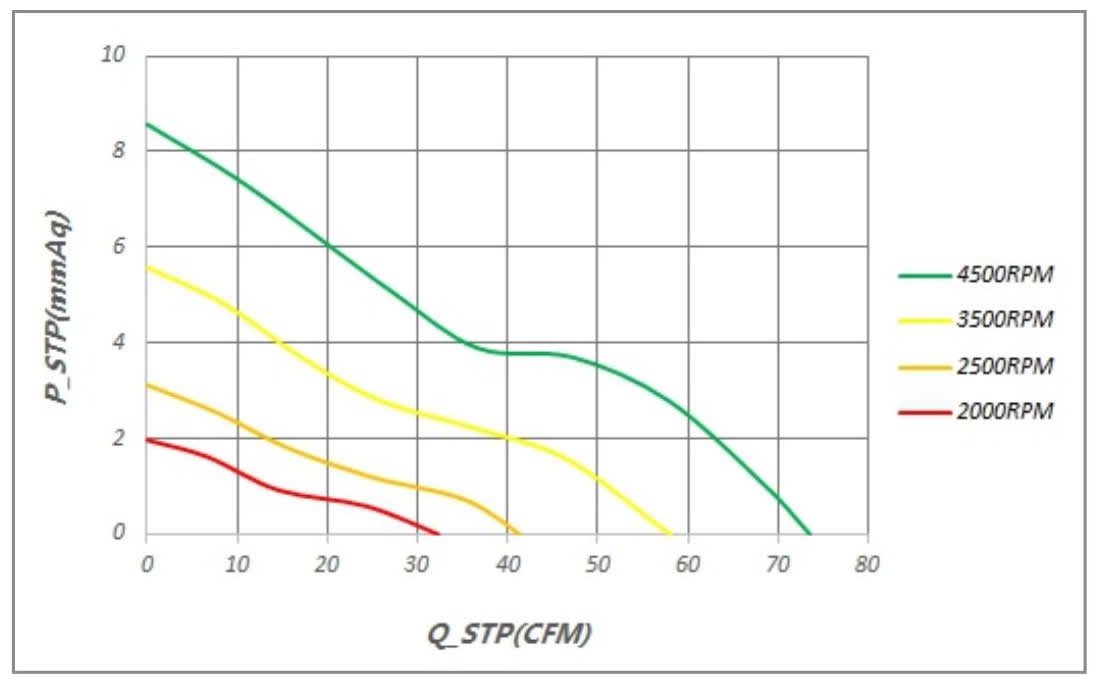

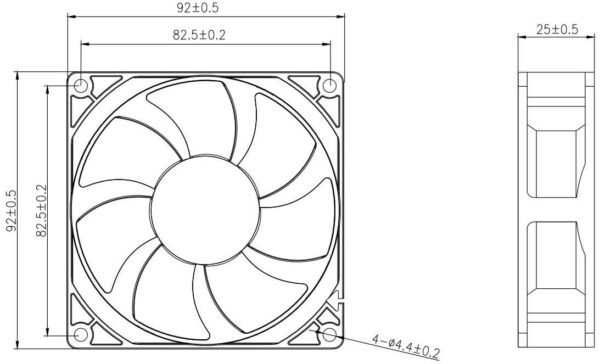

Dimensions Drawing and P&Q Curve
