JF080 — 80mm DC cooling fans

Review the JF080 80mm DC axial cooling fan family, source specification sheets and dimensions. Send your required configuration to JyFan.

Model selection

Family	JF080
Frame / size	80 × 80 × 10 mm — JF8010 80 × 80 × 15 mm — JF8015 80 × 80 × 20 mm — JF8020 80 × 80 × 25 mm — JF8025 80 × 80 × 32 mm — JF8032 80 × 80 × 38 mm — JF8038
Power type	DC
Bearing system	Sleeve / Hydraumatic / Dual Ball
Life Expectancy	30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH.
Selection documents	See the dimensions, performance curves and model tables below.

Request the right configuration

Include the full model number, voltage, required airflow and pressure, quantity and intended application.

Inquire about JF080

Price, lead time, bearing and control options are confirmed for the selected configuration.

80mm DC fan series

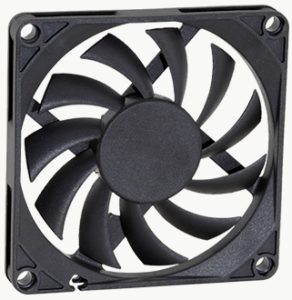

JF8010

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8010 series.

Dimensions & performance

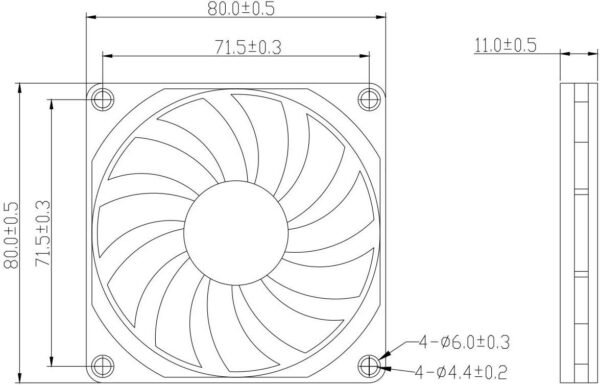

JF8010 dimension drawing — Dimension drawing

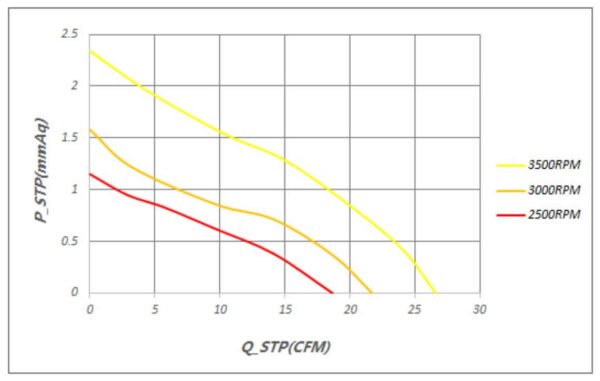

JF8010 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

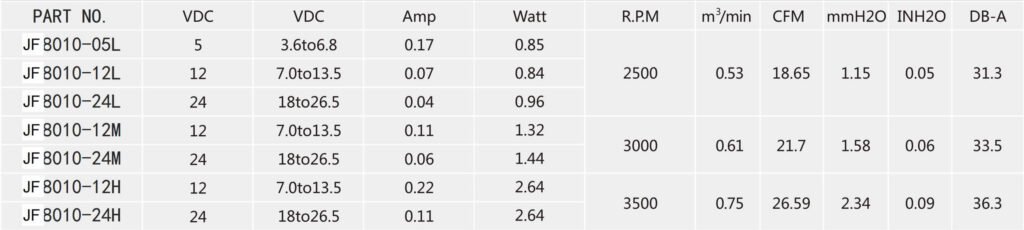

JF8010 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8010-05L	5 VDC	3.6 to 6.8 VDC	0.17 A	0.85 W	2500 RPM	0.53 m³/min / 18.65 CFM	1.15 mmH2O / 0.05 inH2O	31.3 dB(A)
JF8010-12L	12 VDC	7.0 to 13.5 VDC	0.07 A	0.84 W	2500 RPM	0.53 m³/min / 18.65 CFM	1.15 mmH2O / 0.05 inH2O	31.3 dB(A)
JF8010-24L	24 VDC	18 to 26.5 VDC	0.04 A	0.96 W	2500 RPM	0.53 m³/min / 18.65 CFM	1.15 mmH2O / 0.05 inH2O	31.3 dB(A)
JF8010-12M	12 VDC	7.0 to 13.5 VDC	0.11 A	1.32 W	3000 RPM	0.61 m³/min / 21.70 CFM	1.58 mmH2O / 0.06 inH2O	33.5 dB(A)
JF8010-24M	24 VDC	18 to 26.5 VDC	0.06 A	1.44 W	3000 RPM	0.61 m³/min / 21.70 CFM	1.58 mmH2O / 0.06 inH2O	33.5 dB(A)
JF8010-12H	12 VDC	7.0 to 13.5 VDC	0.22 A	2.64 W	3500 RPM	0.75 m³/min / 26.59 CFM	2.34 mmH2O / 0.09 inH2O	36.3 dB(A)
JF8010-24H	24 VDC	18 to 26.5 VDC	0.11 A	2.64 W	3500 RPM	0.75 m³/min / 26.59 CFM	2.34 mmH2O / 0.09 inH2O	36.3 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

80mm DC fan series

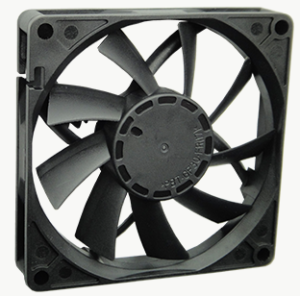

JF8015

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8015 series.

Dimensions & performance

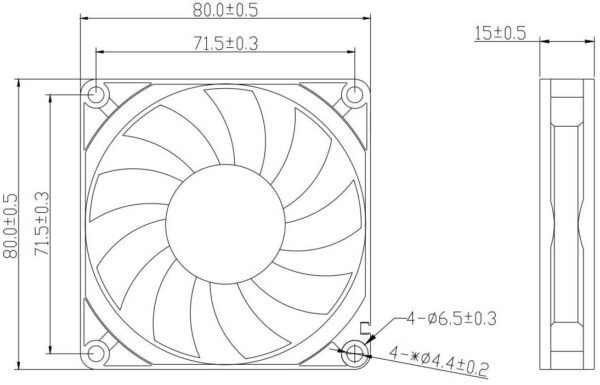

JF8015 dimension drawing — Dimension drawing

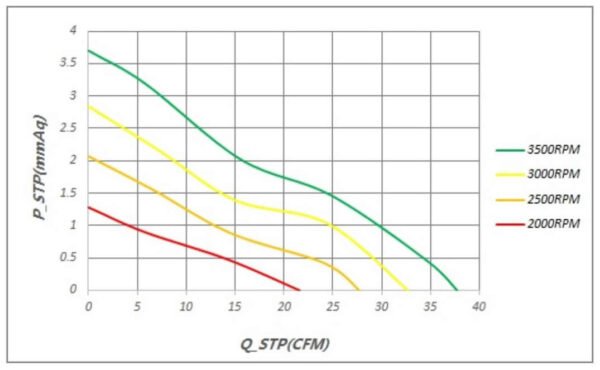

JF8015 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

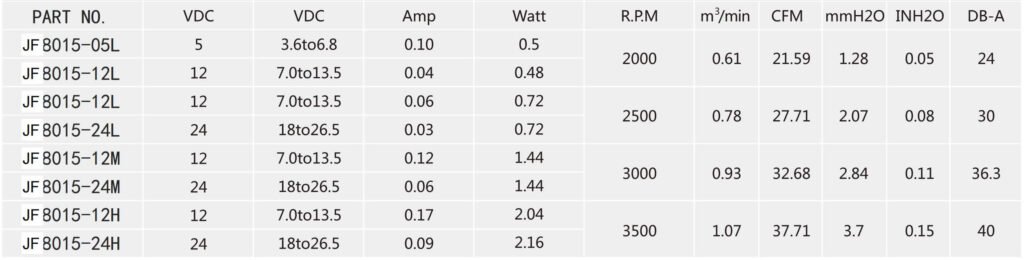

JF8015 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8015-05L	5 VDC	3.6 to 6.8 VDC	0.10 A	0.50 W	2000 RPM	0.61 m³/min / 21.59 CFM	1.28 mmH2O / 0.05 inH2O	24.0 dB(A)
JF8015-12L	12 VDC	7.0 to 13.5 VDC	0.04 A	0.48 W	2000 RPM	0.61 m³/min / 21.59 CFM	1.28 mmH2O / 0.05 inH2O	24.0 dB(A)
JF8015-12L	12 VDC	7.0 to 13.5 VDC	0.06 A	0.72 W	2500 RPM	0.78 m³/min / 27.71 CFM	2.07 mmH2O / 0.08 inH2O	30.0 dB(A)
JF8015-24L	24 VDC	18 to 26.5 VDC	0.03 A	0.72 W	2500 RPM	0.78 m³/min / 27.71 CFM	2.07 mmH2O / 0.08 inH2O	30.0 dB(A)
JF8015-12M	12 VDC	7.0 to 13.5 VDC	0.12 A	1.44 W	3000 RPM	0.93 m³/min / 32.68 CFM	2.84 mmH2O / 0.11 inH2O	36.3 dB(A)
JF8015-24M	24 VDC	18 to 26.5 VDC	0.06 A	1.44 W	3000 RPM	0.93 m³/min / 32.68 CFM	2.84 mmH2O / 0.11 inH2O	36.3 dB(A)
JF8015-12H	12 VDC	7.0 to 13.5 VDC	0.17 A	2.04 W	3500 RPM	1.07 m³/min / 37.71 CFM	3.80 mmH2O / 0.15 inH2O	40.0 dB(A)
JF8015-24H	24 VDC	18 to 26.5 VDC	0.09 A	2.16 W	3500 RPM	1.07 m³/min / 37.71 CFM	3.80 mmH2O / 0.15 inH2O	40.0 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

80mm DC fan series

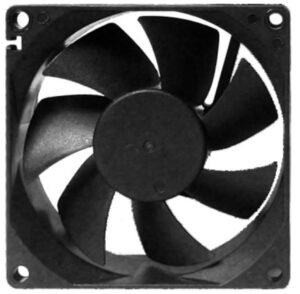

JF8020

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8020 series.

Dimensions & performance

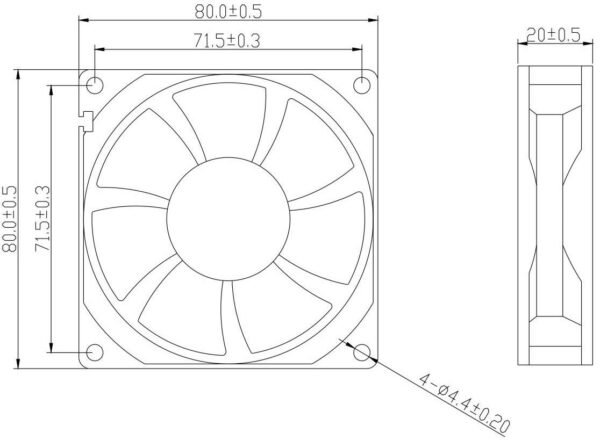

JF8020 dimension drawing — Dimension drawing

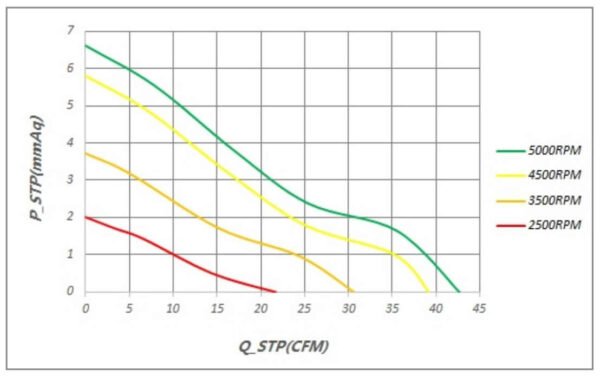

JF8020 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

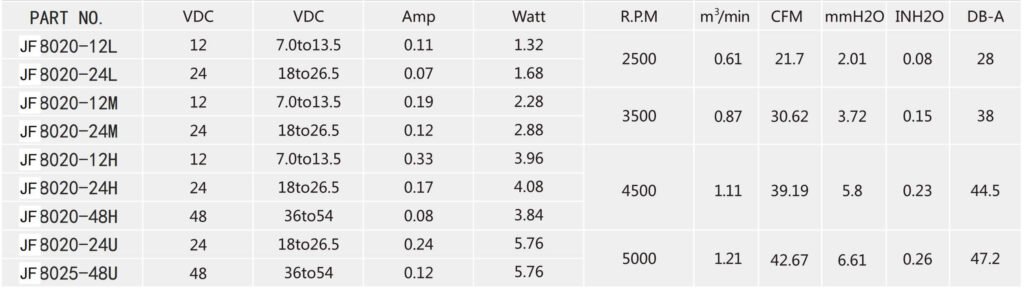

JF8020 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8020-12L	12 VDC	7.0 to 13.5 VDC	0.11 A	1.32 W	2500 RPM	0.61 m³/min / 21.70 CFM	2.01 mmH2O / 0.08 inH2O	28.0 dB(A)
JF8020-24L	24 VDC	18 to 26.5 VDC	0.07 A	1.68 W	2500 RPM	0.61 m³/min / 21.70 CFM	2.01 mmH2O / 0.08 inH2O	28.0 dB(A)
JF8020-12M	12 VDC	7.0 to 13.5 VDC	0.19 A	2.28 W	3500 RPM	0.87 m³/min / 30.62 CFM	3.72 mmH2O / 0.15 inH2O	38.0 dB(A)
JF8020-24M	24 VDC	18 to 26.5 VDC	0.12 A	2.88 W	3500 RPM	0.87 m³/min / 30.62 CFM	3.72 mmH2O / 0.15 inH2O	38.0 dB(A)
JF8020-12H	12 VDC	7.0 to 13.5 VDC	0.33 A	3.96 W	4500 RPM	1.11 m³/min / 39.19 CFM	5.80 mmH2O / 0.23 inH2O	44.5 dB(A)
JF8020-24H	24 VDC	18 to 26.5 VDC	0.17 A	4.08 W	4500 RPM	1.11 m³/min / 39.19 CFM	5.80 mmH2O / 0.23 inH2O	44.5 dB(A)
JF8020-48H	48 VDC	36 to 54 VDC	0.08 A	3.84 W	4500 RPM	1.11 m³/min / 39.19 CFM	5.80 mmH2O / 0.23 inH2O	44.5 dB(A)
JF8020-24U	24 VDC	18 to 26.5 VDC	0.24 A	5.76 W	5000 RPM	1.21 m³/min / 42.67 CFM	6.61 mmH2O / 0.26 inH2O	47.2 dB(A)
JF8020-48U	48 VDC	36 to 54 VDC	0.12 A	5.76 W	5000 RPM	1.21 m³/min / 42.67 CFM	6.61 mmH2O / 0.26 inH2O	47.2 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

80mm DC fan series

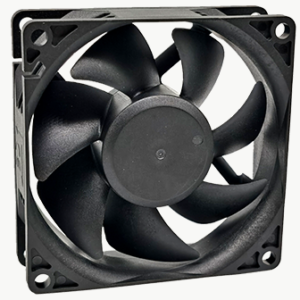

JF8025

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8025 series.

Dimensions & performance

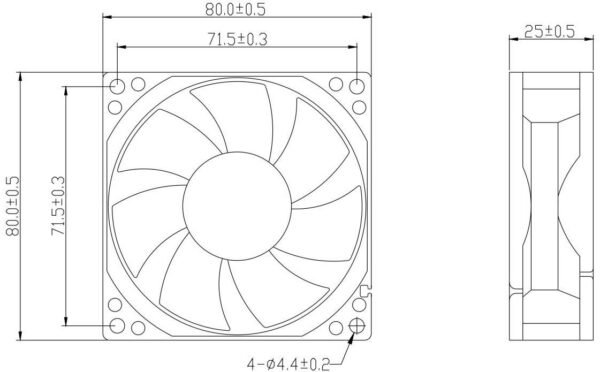

JF8025 dimension drawing — Dimension drawing

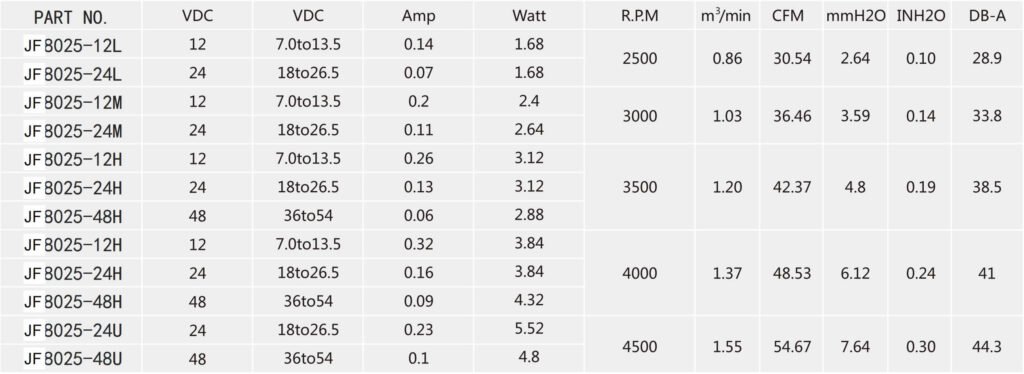

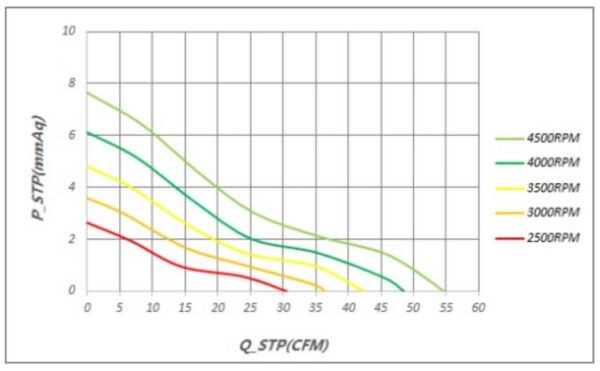

JF8025 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

JF8025 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8025-12L	12 VDC	7.0 to 13.5 VDC	0.14 A	1.68 W	2500 RPM	0.86 m³/min / 30.54 CFM	2.64 mmH2O / 0.10 inH2O	28.9 dB(A)
JF8025-24L	24 VDC	18 to 26.5 VDC	0.07 A	1.68 W	2500 RPM	0.86 m³/min / 30.54 CFM	2.64 mmH2O / 0.10 inH2O	28.9 dB(A)
JF8025-12M	12 VDC	7.0 to 13.5 VDC	0.20 A	2.40 W	3000 RPM	1.03 m³/min / 36.46 CFM	3.59 mmH2O / 0.14 inH2O	33.8 dB(A)
JF8025-24M	24 VDC	18 to 26.5 VDC	0.11 A	2.64 W	3000 RPM	1.03 m³/min / 36.46 CFM	3.59 mmH2O / 0.14 inH2O	33.8 dB(A)
JF8025-12MM	12 VDC	7.0 to 13.5 VDC	0.26 A	3.12 W	3500 RPM	1.20 m³/min / 42.37 CFM	4.80 mmH2O / 0.19 inH2O	38.5 dB(A)
JF8025-24MM	24 VDC	18 to 26.5 VDC	0.13 A	3.12 W	3500 RPM	1.20 m³/min / 42.37 CFM	4.80 mmH2O / 0.19 inH2O	38.5 dB(A)
JF8025-48MM	48 VDC	36 to 54 VDC	0.06 A	2.88 W	3500 RPM	1.20 m³/min / 42.37 CFM	4.80 mmH2O / 0.19 inH2O	38.5 dB(A)
JF8025-12H	12 VDC	7.0 to 13.5 VDC	0.32 A	3.84 W	4000 RPM	1.37 m³/min / 48.53 CFM	6.12 mmH2O / 0.24 inH2O	41.0 dB(A)
JF8025-24H	24 VDC	18 to 26.5 VDC	0.16 A	3.84 W	4000 RPM	1.37 m³/min / 48.53 CFM	6.12 mmH2O / 0.24 inH2O	41.0 dB(A)
JF8025-48H	48 VDC	36 to 54 VDC	0.09 A	4.32 W	4000 RPM	1.37 m³/min / 48.53 CFM	6.12 mmH2O / 0.24 inH2O	41.0 dB(A)
JF8025-24U	24 VDC	18 to 26.5 VDC	0.23 A	5.52 W	4500 RPM	1.55 m³/min / 54.67 CFM	7.64 mmH2O / 0.30 inH2O	44.3 dB(A)
JF8025-48U	48 VDC	36 to 54 VDC	0.10 A	4.80 W	4500 RPM	1.55 m³/min / 54.67 CFM	7.64 mmH2O / 0.30 inH2O	44.3 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

80mm DC fan series

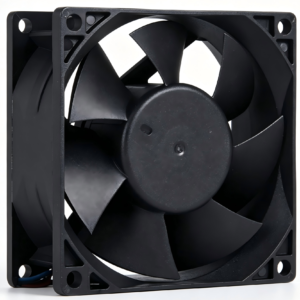

JF8032

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8032 series.

Dimensions & performance

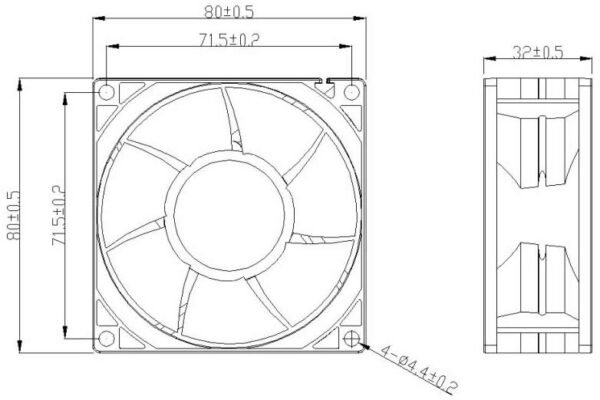

JF8032 dimension drawing — Dimension drawing

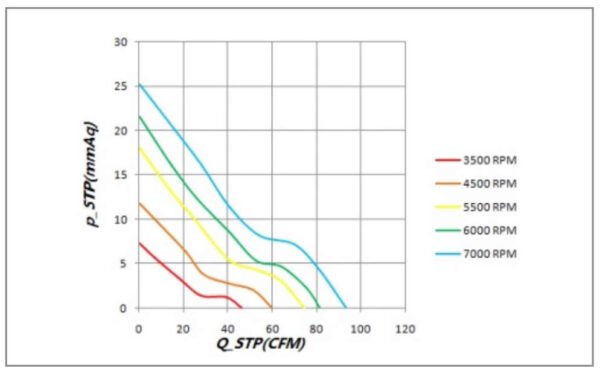

JF8032 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

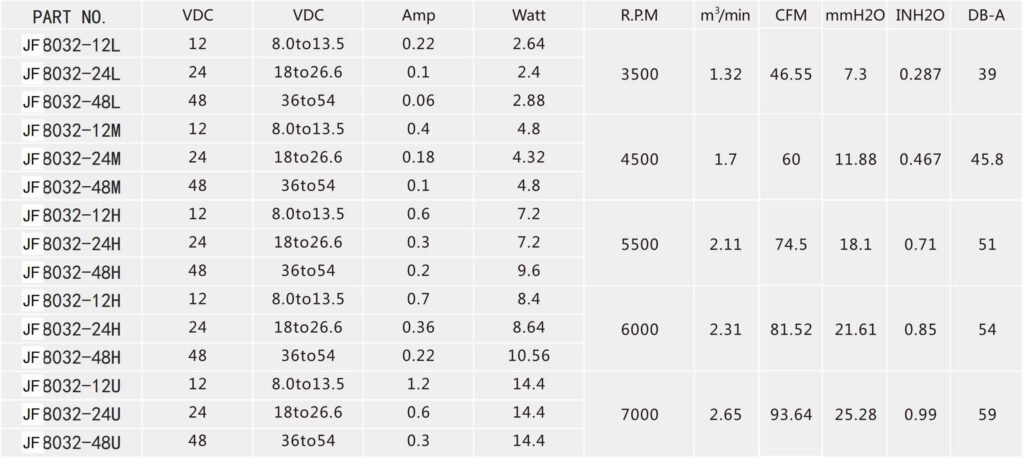

JF8032 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8032-12L	12 VDC	8.0 to 13.5 VDC	0.22 A	2.64 W	3500 RPM	1.32 m³/min / 46.55 CFM	7.30 mmH2O / 0.287 inH2O	39.0 dB(A)
JF8032-24L	24 VDC	18 to 26.6 VDC	0.10 A	2.40 W	3500 RPM	1.32 m³/min / 46.55 CFM	7.30 mmH2O / 0.287 inH2O	39.0 dB(A)
JF8032-48L	48 VDC	36 to 54 VDC	0.06 A	2.88 W	3500 RPM	1.32 m³/min / 46.55 CFM	7.30 mmH2O / 0.287 inH2O	39.0 dB(A)
JF8032-12M	12 VDC	8.0 to 13.5 VDC	0.40 A	4.80 W	4500 RPM	1.70 m³/min / 60.00 CFM	11.88 mmH2O / 0.467 inH2O	45.8 dB(A)
JF8032-24M	24 VDC	18 to 26.6 VDC	0.18 A	4.32 W	4500 RPM	1.70 m³/min / 60.00 CFM	11.88 mmH2O / 0.467 inH2O	45.8 dB(A)
JF8032-48M	48 VDC	36 to 54 VDC	0.10 A	4.80 W	4500 RPM	1.70 m³/min / 60.00 CFM	11.88 mmH2O / 0.467 inH2O	45.8 dB(A)
JF8032-12H	12 VDC	8.0 to 13.5 VDC	0.60 A	7.20 W	5500 RPM	2.11 m³/min / 74.50 CFM	18.10 mmH2O / 0.71 inH2O	51.0 dB(A)
JF8032-24H	24 VDC	18 to 26.6 VDC	0.30 A	7.20 W	5500 RPM	2.11 m³/min / 74.50 CFM	18.10 mmH2O / 0.71 inH2O	51.0 dB(A)
JF8032-48H	48 VDC	36 to 54 VDC	0.20 A	9.60 W	5500 RPM	2.11 m³/min / 74.50 CFM	18.10 mmH2O / 0.71 inH2O	51.0 dB(A)
JF8032-12H	12 VDC	8.0 to 13.5 VDC	0.70 A	8.40 W	6000 RPM	2.31 m³/min / 81.52 CFM	21.61 mmH2O / 0.85 inH2O	54.0 dB(A)
JF8032-24H	24 VDC	18 to 26.6 VDC	0.36 A	8.64 W	6000 RPM	2.31 m³/min / 81.52 CFM	21.61 mmH2O / 0.85 inH2O	54.0 dB(A)
JF8032-48H	48 VDC	36 to 54 VDC	0.22 A	10.56 W	6000 RPM	2.31 m³/min / 81.52 CFM	21.61 mmH2O / 0.85 inH2O	54.0 dB(A)
JF8032-12U	12 VDC	8.0 to 13.5 VDC	1.20 A	14.40 W	7000 RPM	2.65 m³/min / 93.64 CFM	25.28 mmH2O / 0.99 inH2O	59.0 dB(A)
JF8032-24U	24 VDC	18 to 26.6 VDC	0.60 A	14.40 W	7000 RPM	2.65 m³/min / 93.64 CFM	25.28 mmH2O / 0.99 inH2O	59.0 dB(A)
JF8032-48U	48 VDC	36 to 54 VDC	0.30 A	14.40 W	7000 RPM	2.65 m³/min / 93.64 CFM	25.28 mmH2O / 0.99 inH2O	59.0 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

80mm DC fan series

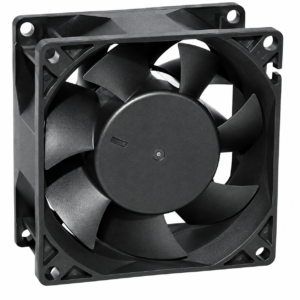

JF8038

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF8038 series.

Dimensions & performance

JF8038 dimension drawing — Dimension drawing

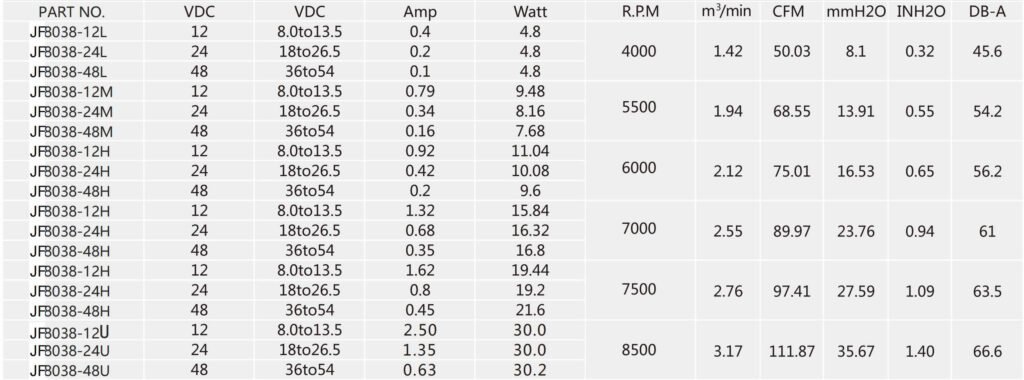

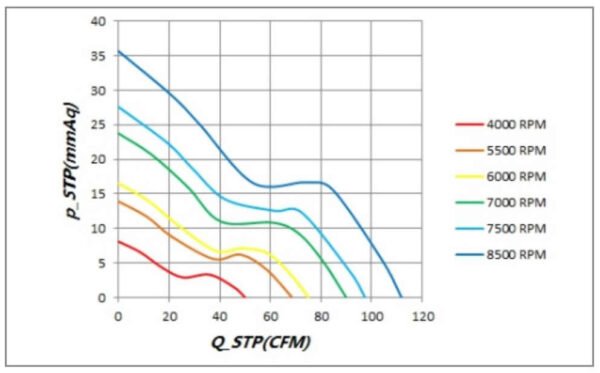

JF8038 airflow and static-pressure curve — Airflow and static-pressure curve

Model parameters & configuration options

JF8038 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF8038-12L	12 VDC	8.0 to 13.5 VDC	0.40 A	4.80 W	4000 RPM	1.42 m³/min / 50.03 CFM	8.10 mmH2O / 0.32 inH2O	45.6 dB(A)
JF8038-24L	24 VDC	18 to 26.5 VDC	0.20 A	4.80 W	4000 RPM	1.42 m³/min / 50.03 CFM	8.10 mmH2O / 0.32 inH2O	45.6 dB(A)
JF8038-48L	48 VDC	36 to 54 VDC	0.10 A	4.80 W	4000 RPM	1.42 m³/min / 50.03 CFM	8.10 mmH2O / 0.32 inH2O	45.6 dB(A)
JF8038-12M	12 VDC	8.0 to 13.5 VDC	0.79 A	9.48 W	5500 RPM	1.94 m³/min / 68.55 CFM	13.91 mmH2O / 0.55 inH2O	54.2 dB(A)
JF8038-24M	24 VDC	18 to 26.5 VDC	0.34 A	8.16 W	5500 RPM	1.94 m³/min / 68.55 CFM	13.91 mmH2O / 0.55 inH2O	54.2 dB(A)
JF8038-48M	48 VDC	36 to 54 VDC	0.16 A	7.68 W	5500 RPM	1.94 m³/min / 68.55 CFM	13.91 mmH2O / 0.55 inH2O	54.2 dB(A)
JF8038-12MM	12 VDC	8.0 to 13.5 VDC	0.92 A	11.04 W	6000 RPM	2.12 m³/min / 75.01 CFM	16.53 mmH2O / 0.65 inH2O	56.2 dB(A)
JF8038-24MM	24 VDC	18 to 26.5 VDC	0.42 A	10.08 W	6000 RPM	2.12 m³/min / 75.01 CFM	16.53 mmH2O / 0.65 inH2O	56.2 dB(A)
JF8038-48MM	48 VDC	36 to 54 VDC	0.20 A	9.60 W	6000 RPM	2.12 m³/min / 75.01 CFM	16.53 mmH2O / 0.65 inH2O	56.2 dB(A)
JF8038-12H	12 VDC	8.0 to 13.5 VDC	1.32 A	15.84 W	7000 RPM	2.55 m³/min / 89.97 CFM	23.76 mmH2O / 0.94 inH2O	61.0 dB(A)
JF8038-24H	24 VDC	18 to 26.5 VDC	0.68 A	16.32 W	7000 RPM	2.55 m³/min / 89.97 CFM	23.76 mmH2O / 0.94 inH2O	61.0 dB(A)
JF8038-48H	48 VDC	36 to 54 VDC	0.35 A	16.80 W	7000 RPM	2.55 m³/min / 89.97 CFM	23.76 mmH2O / 0.94 inH2O	61.0 dB(A)
JF8038-12HH	12 VDC	8.0 to 13.5 VDC	1.62 A	19.44 W	7500 RPM	2.76 m³/min / 97.41 CFM	27.59 mmH2O / 1.09 inH2O	63.5 dB(A)
JF8038-24HH	24 VDC	18 to 26.5 VDC	0.80 A	19.20 W	7500 RPM	2.76 m³/min / 97.41 CFM	27.59 mmH2O / 1.09 inH2O	63.5 dB(A)
JF8038-48HH	48 VDC	36 to 54 VDC	0.45 A	21.60 W	7500 RPM	2.76 m³/min / 97.41 CFM	27.59 mmH2O / 1.09 inH2O	63.5 dB(A)
JF8038-12U	12 VDC	8.0 to 13.5 VDC	2.50 A	30.00 W	8500 RPM	3.17 m³/min / 111.87 CFM	35.67 mmH2O / 1.40 inH2O	66.6 dB(A)
JF8038-24U	24 VDC	18 to 26.5 VDC	1.35 A	30.00 W	8500 RPM	3.17 m³/min / 111.87 CFM	35.67 mmH2O / 1.40 inH2O	66.6 dB(A)
JF8038-48U	48 VDC	36 to 54 VDC	0.63 A	30.20 W	8500 RPM	3.17 m³/min / 111.87 CFM	35.67 mmH2O / 1.40 inH2O	66.6 dB(A)

Configuration marks shown in the supplied option charts. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the charts
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.

Start with your cooling requirements.

Share the size, voltage, airflow, operating conditions and quantity.

Request a quote →
