JF5010 DC cooling fan.

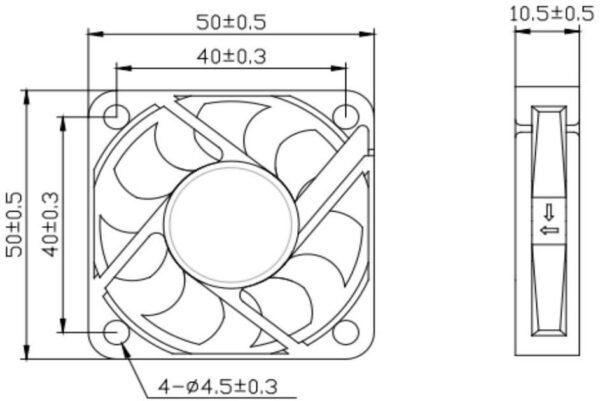

Dimension drawing

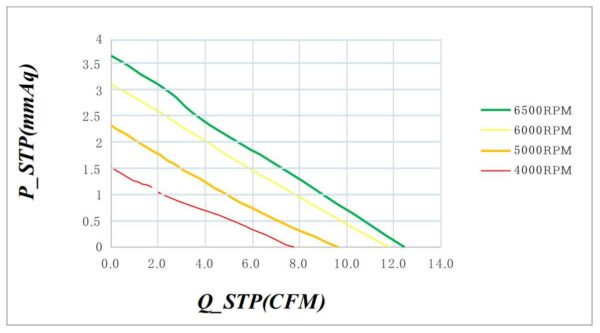

Airflow and static-pressure curve
JF5015 DC cooling fan.

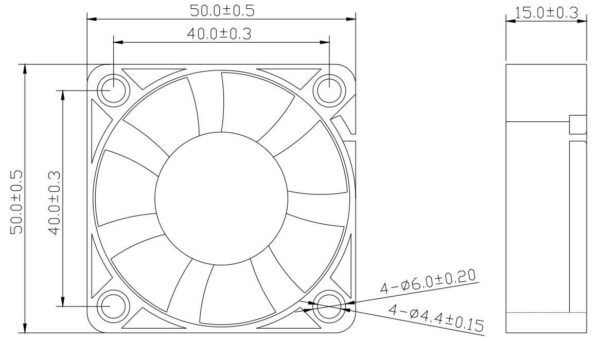

Dimension drawing

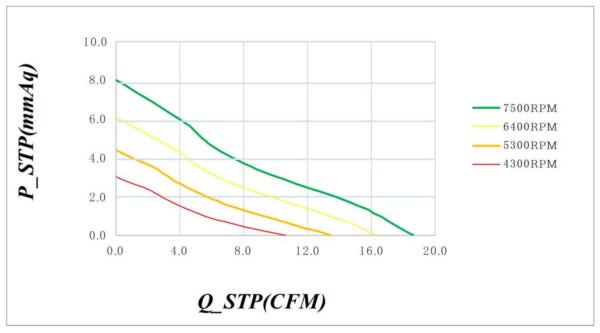

Airflow and static-pressure curve
JF5020 DC cooling fan.

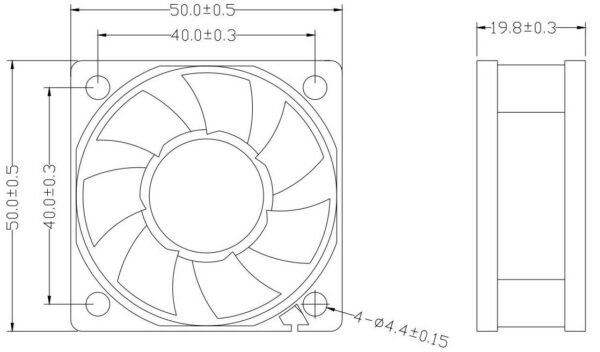

Dimension drawing

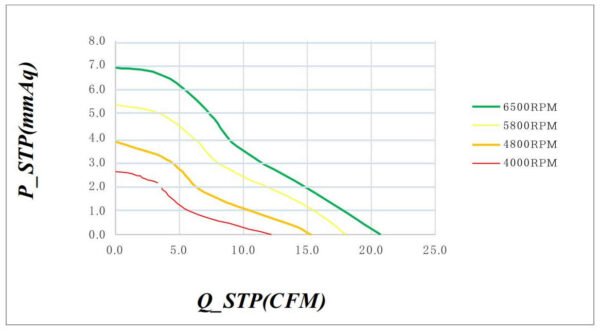

Airflow and static-pressure curve
Request a quote →
DC axial fans
JF050 — 50mm DC cooling fans
Review the JF050 50mm DC axial cooling fan family, source specification sheets and dimensions. Send your required configuration to JyFan.
Model selection
| Family | JF050 |
| Frame / size | 50 × 50 × 10 mm — JF5010 50 × 50 × 15 mm — JF5015 50 × 50 × 20 mm — JF5020 |
| Power type | DC |
| Bearing system | Sleeve / Hydraumatic / Dual Ball |
| Life Expectancy | 30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH. |
| Selection documents | See the dimensions, performance curves and model tables below. |
Request the right configuration
Include the full model number, voltage, required airflow and pressure, quantity and intended application.
Inquire about JF050Price, lead time, bearing and control options are confirmed for the selected configuration.
50mm DC fan series
JF5010
Review the product image, dimension drawing, performance curve and model-specific parameters for this JF5010 series.
Dimensions & performance
Model parameters & configuration options

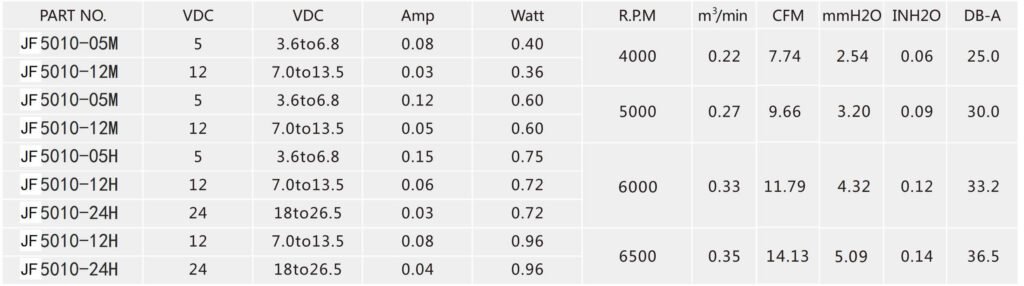

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF5010-05M | 5 VDC | 3.6 to 6.8 VDC | 0.08 A | 0.40 W | 4000 RPM | 0.22 m³/min / 7.74 CFM | 2.54 mmH2O / 0.06 inH2O | 25.0 dB(A) |
| JF5010-12M | 12 VDC | 7.0 to 13.5 VDC | 0.03 A | 0.36 W | 4000 RPM | 0.22 m³/min / 7.74 CFM | 2.54 mmH2O / 0.06 inH2O | 25.0 dB(A) |
| JF5010-05M | 5 VDC | 3.6 to 6.8 VDC | 0.12 A | 0.60 W | 5000 RPM | 0.27 m³/min / 9.66 CFM | 3.20 mmH2O / 0.09 inH2O | 30.0 dB(A) |
| JF5010-12M | 12 VDC | 7.0 to 13.5 VDC | 0.05 A | 0.60 W | 5000 RPM | 0.27 m³/min / 9.66 CFM | 3.20 mmH2O / 0.09 inH2O | 30.0 dB(A) |
| JF5010-05H | 5 VDC | 3.6 to 6.8 VDC | 0.15 A | 0.75 W | 6000 RPM | 0.33 m³/min / 11.79 CFM | 4.32 mmH2O / 0.12 inH2O | 33.2 dB(A) |
| JF5010-12H | 12 VDC | 7.0 to 13.5 VDC | 0.06 A | 0.72 W | 6000 RPM | 0.33 m³/min / 11.79 CFM | 4.32 mmH2O / 0.12 inH2O | 33.2 dB(A) |
| JF5010-24H | 24 VDC | 18 to 26.5 VDC | 0.03 A | 0.72 W | 6000 RPM | 0.33 m³/min / 11.79 CFM | 4.32 mmH2O / 0.12 inH2O | 33.2 dB(A) |
| JF5010-12H | 12 VDC | 7.0 to 13.5 VDC | 0.08 A | 0.96 W | 6500 RPM | 0.35 m³/min / 14.13 CFM | 5.09 mmH2O / 0.14 inH2O | 36.5 dB(A) |
| JF5010-24H | 24 VDC | 18 to 26.5 VDC | 0.04 A | 0.96 W | 6500 RPM | 0.35 m³/min / 14.13 CFM | 5.09 mmH2O / 0.14 inH2O | 36.5 dB(A) |
| Function group | Marked option(s) | Other options shown in the charts |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
50mm DC fan series
JF5015
Review the product image, dimension drawing, performance curve and model-specific parameters for this JF5015 series.
Dimensions & performance
Model parameters & configuration options

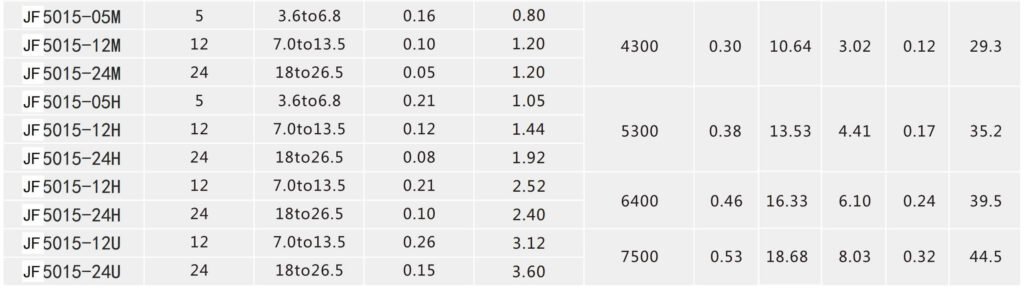

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF5015-05M | 5 VDC | 3.6 to 6.8 VDC | 0.16 A | 0.80 W | 4300 RPM | 0.30 m³/min / 10.64 CFM | 3.02 mmH2O / 0.12 inH2O | 29.3 dB(A) |
| JF5015-12M | 12 VDC | 7.0 to 13.5 VDC | 0.10 A | 1.20 W | 4300 RPM | 0.30 m³/min / 10.64 CFM | 3.02 mmH2O / 0.12 inH2O | 29.3 dB(A) |
| JF5015-24M | 24 VDC | 18 to 26.5 VDC | 0.05 A | 1.20 W | 4300 RPM | 0.30 m³/min / 10.64 CFM | 3.02 mmH2O / 0.12 inH2O | 29.3 dB(A) |
| JF5015-05H | 5 VDC | 3.6 to 6.8 VDC | 0.21 A | 1.05 W | 5300 RPM | 0.38 m³/min / 13.53 CFM | 4.41 mmH2O / 0.17 inH2O | 35.2 dB(A) |
| JF5015-12H | 12 VDC | 7.0 to 13.5 VDC | 0.12 A | 1.44 W | 5300 RPM | 0.38 m³/min / 13.53 CFM | 4.41 mmH2O / 0.17 inH2O | 35.2 dB(A) |
| JF5015-24H | 24 VDC | 18 to 26.5 VDC | 0.08 A | 1.92 W | 5300 RPM | 0.38 m³/min / 13.53 CFM | 4.41 mmH2O / 0.17 inH2O | 35.2 dB(A) |
| JF5015-12H | 12 VDC | 7.0 to 13.5 VDC | 0.21 A | 2.52 W | 6400 RPM | 0.46 m³/min / 16.33 CFM | 6.10 mmH2O / 0.24 inH2O | 39.5 dB(A) |
| JF5015-24H | 24 VDC | 18 to 26.5 VDC | 0.10 A | 2.40 W | 6400 RPM | 0.46 m³/min / 16.33 CFM | 6.10 mmH2O / 0.24 inH2O | 39.5 dB(A) |
| JF5015-12U | 12 VDC | 7.0 to 13.5 VDC | 0.26 A | 3.12 W | 7500 RPM | 0.53 m³/min / 18.68 CFM | 8.03 mmH2O / 0.32 inH2O | 44.5 dB(A) |
| JF5015-24U | 24 VDC | 18 to 26.5 VDC | 0.15 A | 3.60 W | 7500 RPM | 0.53 m³/min / 18.68 CFM | 8.03 mmH2O / 0.32 inH2O | 44.5 dB(A) |
| Function group | Marked option(s) | Other options shown in the charts |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
50mm DC fan series
JF5020
Review the product image, dimension drawing, performance curve and model-specific parameters for this JF5020 series.
Dimensions & performance
Model parameters & configuration options

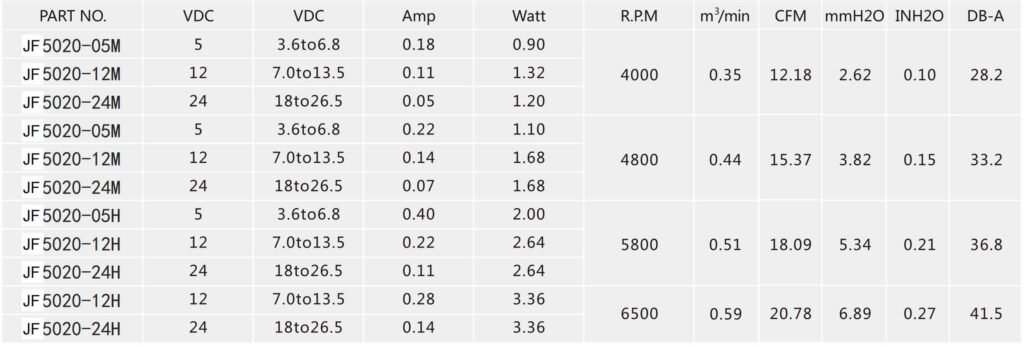

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF5020-05M | 5 VDC | 3.6 to 6.8 VDC | 0.18 A | 0.90 W | 4000 RPM | 0.35 m³/min / 12.18 CFM | 2.62 mmH2O / 0.10 inH2O | 28.2 dB(A) |
| JF5020-12M | 12 VDC | 7.0 to 13.5 VDC | 0.11 A | 1.32 W | 4000 RPM | 0.35 m³/min / 12.18 CFM | 2.62 mmH2O / 0.10 inH2O | 28.2 dB(A) |
| JF5020-24M | 24 VDC | 18 to 26.5 VDC | 0.05 A | 1.20 W | 4000 RPM | 0.35 m³/min / 12.18 CFM | 2.62 mmH2O / 0.10 inH2O | 28.2 dB(A) |
| JF5020-05M | 5 VDC | 3.6 to 6.8 VDC | 0.22 A | 1.10 W | 4800 RPM | 0.44 m³/min / 15.37 CFM | 3.82 mmH2O / 0.15 inH2O | 33.2 dB(A) |
| JF5020-12M | 12 VDC | 7.0 to 13.5 VDC | 0.14 A | 1.68 W | 4800 RPM | 0.44 m³/min / 15.37 CFM | 3.82 mmH2O / 0.15 inH2O | 33.2 dB(A) |
| JF5020-24M | 24 VDC | 18 to 26.5 VDC | 0.07 A | 1.68 W | 4800 RPM | 0.44 m³/min / 15.37 CFM | 3.82 mmH2O / 0.15 inH2O | 33.2 dB(A) |
| JF5020-05H | 5 VDC | 3.6 to 6.8 VDC | 0.40 A | 2.00 W | 5800 RPM | 0.51 m³/min / 18.09 CFM | 5.34 mmH2O / 0.21 inH2O | 36.8 dB(A) |
| JF5020-12H | 12 VDC | 7.0 to 13.5 VDC | 0.22 A | 2.64 W | 5800 RPM | 0.51 m³/min / 18.09 CFM | 5.34 mmH2O / 0.21 inH2O | 36.8 dB(A) |
| JF5020-24H | 24 VDC | 18 to 26.5 VDC | 0.11 A | 2.64 W | 5800 RPM | 0.51 m³/min / 18.09 CFM | 5.34 mmH2O / 0.21 inH2O | 36.8 dB(A) |
| JF5020-12H | 12 VDC | 7.0 to 13.5 VDC | 0.28 A | 3.36 W | 6500 RPM | 0.59 m³/min / 20.78 CFM | 6.89 mmH2O / 0.27 inH2O | 41.5 dB(A) |
| JF5020-24H | 24 VDC | 18 to 26.5 VDC | 0.14 A | 3.36 W | 6500 RPM | 0.59 m³/min / 20.78 CFM | 6.89 mmH2O / 0.27 inH2O | 41.5 dB(A) |
| Function group | Marked option(s) | Other options shown in the charts |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.
