JF045 — 45mm DC cooling fans

Review the JF045 45mm DC cooling fan family, model parameters, dimension drawing and performance curve. Send your required configuration to JyFan.

Model selection

Family	JF045
Frame / size	45 × 45 × 10 mm — JF4510
Power type	DC
Bearing system	Sleeve / Hydraumatic / Dual Ball
Life Expectancy	30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH.
Selection documents	See the dimensions, performance curve and model table below.

Include the full model number, voltage, required airflow and pressure, quantity and intended application.

Price, lead time, bearing and control options are confirmed for the selected configuration.

45mm DC fan series

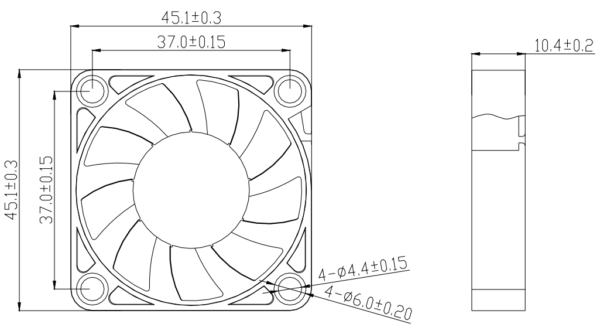

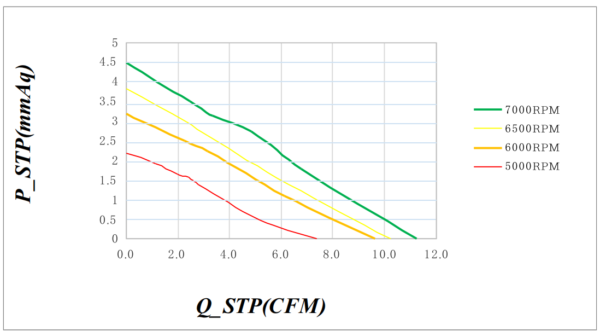

Review the product image, dimension drawing, performance curve and model-specific parameters for this JF4510 series.

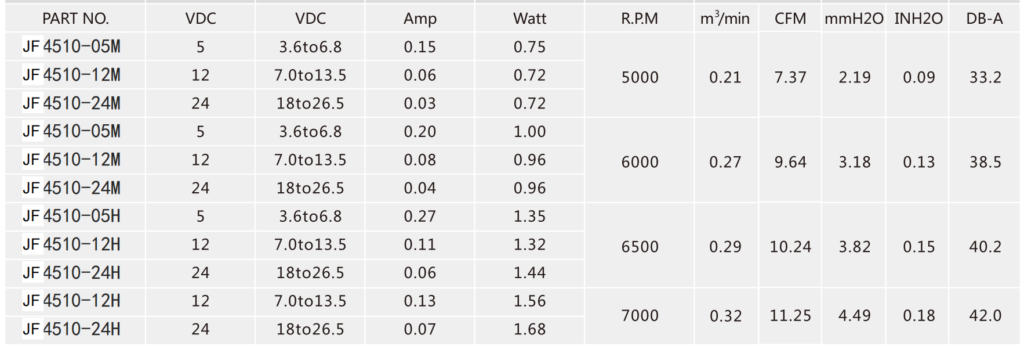

JF4510 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF4510-05M	5 VDC	3.6 to 6.8 VDC	0.15 A	0.75 W	5000 RPM	0.21 m³/min / 7.37 CFM	2.19 mmH2O / 0.09 inH2O	33.2 dB(A)
JF4510-12M	12 VDC	7.0 to 13.5 VDC	0.06 A	0.72 W	5000 RPM	0.21 m³/min / 7.37 CFM	2.19 mmH2O / 0.09 inH2O	33.2 dB(A)
JF4510-24M	24 VDC	18 to 26.5 VDC	0.03 A	0.72 W	5000 RPM	0.21 m³/min / 7.37 CFM	2.19 mmH2O / 0.09 inH2O	33.2 dB(A)
JF4510-05M	5 VDC	3.6 to 6.8 VDC	0.20 A	1.00 W	6000 RPM	0.27 m³/min / 9.64 CFM	3.18 mmH2O / 0.13 inH2O	38.5 dB(A)
JF4510-12M	12 VDC	7.0 to 13.5 VDC	0.08 A	0.96 W	6000 RPM	0.27 m³/min / 9.64 CFM	3.18 mmH2O / 0.13 inH2O	38.5 dB(A)
JF4510-24M	24 VDC	18 to 26.5 VDC	0.04 A	0.96 W	6000 RPM	0.27 m³/min / 9.64 CFM	3.18 mmH2O / 0.13 inH2O	38.5 dB(A)
JF4510-05H	5 VDC	3.6 to 6.8 VDC	0.27 A	1.35 W	6500 RPM	0.29 m³/min / 10.24 CFM	3.82 mmH2O / 0.15 inH2O	40.2 dB(A)
JF4510-12H	12 VDC	7.0 to 13.5 VDC	0.11 A	1.32 W	6500 RPM	0.29 m³/min / 10.24 CFM	3.82 mmH2O / 0.15 inH2O	40.2 dB(A)
JF4510-24H	24 VDC	18 to 26.5 VDC	0.06 A	1.44 W	6500 RPM	0.29 m³/min / 10.24 CFM	3.82 mmH2O / 0.15 inH2O	40.2 dB(A)
JF4510-12H	12 VDC	7.0 to 13.5 VDC	0.13 A	1.56 W	7000 RPM	0.32 m³/min / 11.25 CFM	4.49 mmH2O / 0.18 inH2O	42.0 dB(A)
JF4510-24H	24 VDC	18 to 26.5 VDC	0.07 A	1.68 W	7000 RPM	0.32 m³/min / 11.25 CFM	4.49 mmH2O / 0.18 inH2O	42.0 dB(A)

Configuration marks shown in the supplied option chart. Confirm availability for the selected model and operating voltage.
Function group	Marked option(s)	Other options shown in the chart
Motor protection	RP, SS, LP, CL	OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

Check the full model designation before ordering. Verify performance at your system operating point and validate the fan in the finished equipment.

Share the size, voltage, airflow, operating conditions and quantity.
