JF3507 DC cooling fan.

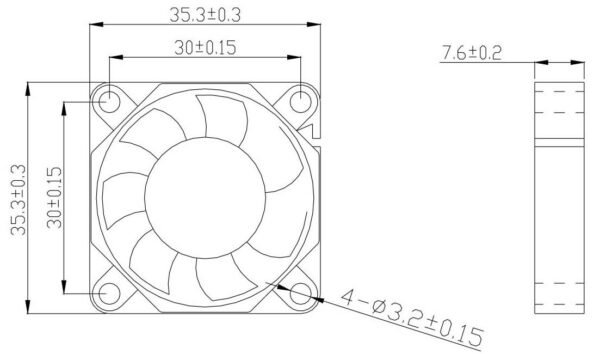

Dimension drawing

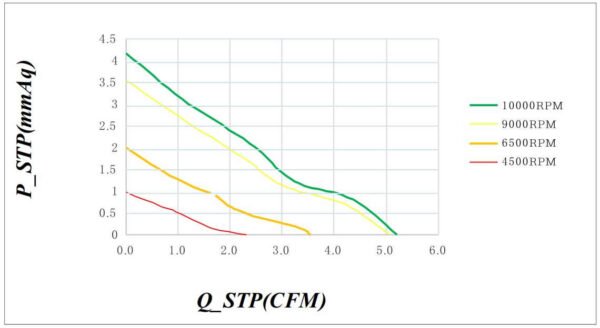

Airflow and static-pressure curve
JF3510 DC cooling fan.

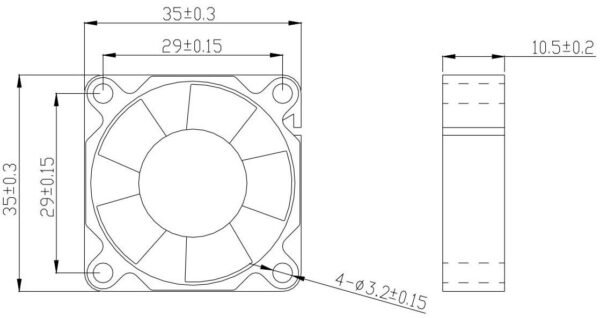

Dimension drawing

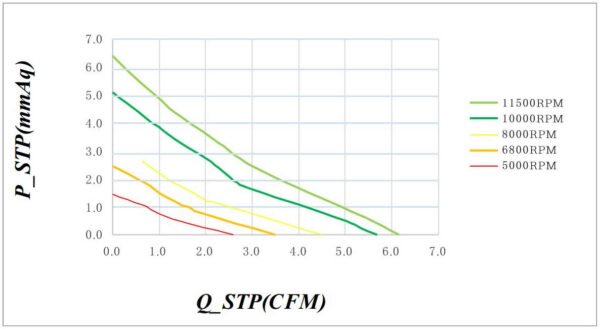

Airflow and static-pressure curve
Request a quote →
DC axial fans
JF035 — 35mm DC cooling fans
Review the JF035 35mm DC axial cooling fan family, source specification sheets and dimensions. Send your required configuration to JyFan.
Model selection
| Family | JF035 |
| Frame / size | 35 × 35 × 7 mm — JF3507 35 × 35 × 10 mm — JF3510 |
| Power type | DC |
| Bearing system | Sleeve / Hydraumatic / Dual Ball |
| Life Expectancy | 30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH. |
| Selection documents | See the dimensions, performance curves and model tables below. |
Request the right configuration
Include the full model number, voltage, required airflow and pressure, quantity and intended application.
Inquire about JF035Price, lead time, bearing and control options are confirmed for the selected configuration.
35mm DC fan series
JF3507
Review the product image, dimension drawing, performance curve and model-specific parameters for this JF3507 series.
Dimensions & performance
Model parameters & configuration options

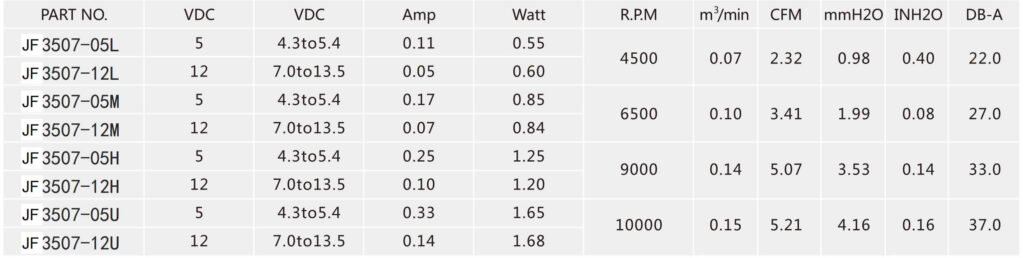

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF3507-05L | 5 VDC | 4.3 to 5.4 VDC | 0.11 A | 0.55 W | 4500 RPM | 0.07 m³/min / 2.32 CFM | 0.98 mmH2O / 0.04 inH2O | 22.0 dB(A) |
| JF3507-12L | 12 VDC | 7.0 to 13.5 VDC | 0.05 A | 0.60 W | 4500 RPM | 0.07 m³/min / 2.32 CFM | 0.98 mmH2O / 0.04 inH2O | 22.0 dB(A) |
| JF3507-05M | 5 VDC | 4.3 to 5.4 VDC | 0.17 A | 0.85 W | 6500 RPM | 0.10 m³/min / 3.41 CFM | 1.99 mmH2O / 0.08 inH2O | 27.0 dB(A) |
| JF3507-12M | 12 VDC | 7.0 to 13.5 VDC | 0.07 A | 0.84 W | 6500 RPM | 0.10 m³/min / 3.41 CFM | 1.99 mmH2O / 0.08 inH2O | 27.0 dB(A) |
| JF3507-05H | 5 VDC | 4.3 to 5.4 VDC | 0.25 A | 1.25 W | 9000 RPM | 0.14 m³/min / 5.07 CFM | 3.53 mmH2O / 0.14 inH2O | 33.0 dB(A) |
| JF3507-12H | 12 VDC | 7.0 to 13.5 VDC | 0.10 A | 1.20 W | 9000 RPM | 0.14 m³/min / 5.07 CFM | 3.53 mmH2O / 0.14 inH2O | 33.0 dB(A) |
| JF3507-05U | 5 VDC | 4.3 to 5.4 VDC | 0.33 A | 1.65 W | 10000 RPM | 0.15 m³/min / 5.21 CFM | 4.16 mmH2O / 0.16 inH2O | 37.0 dB(A) |
| JF3507-12U | 12 VDC | 7.0 to 13.5 VDC | 0.14 A | 1.68 W | 10000 RPM | 0.15 m³/min / 5.21 CFM | 4.16 mmH2O / 0.16 inH2O | 37.0 dB(A) |
| Function group | Marked option(s) | Other options shown in the charts |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
35mm DC fan series
JF3510
Review the product image, dimension drawing, performance curve and model-specific parameters for this JF3510 series.
Dimensions & performance
Model parameters & configuration options

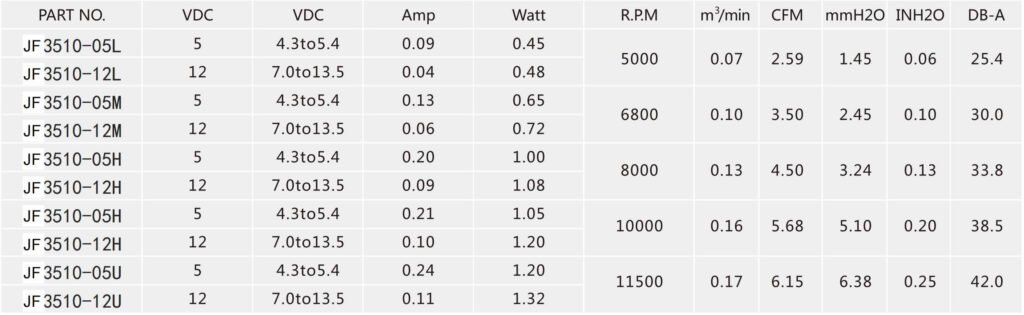

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF3510-05L | 5 VDC | 4.3 to 5.4 VDC | 0.09 A | 0.45 W | 5000 RPM | 0.07 m³/min / 2.59 CFM | 1.45 mmH2O / 0.06 inH2O | 25.4 dB(A) |
| JF3510-12L | 12 VDC | 7.0 to 13.5 VDC | 0.04 A | 0.48 W | 5000 RPM | 0.07 m³/min / 2.59 CFM | 1.45 mmH2O / 0.06 inH2O | 25.4 dB(A) |
| JF3510-05M | 5 VDC | 4.3 to 5.4 VDC | 0.13 A | 0.65 W | 6800 RPM | 0.10 m³/min / 3.50 CFM | 2.45 mmH2O / 0.10 inH2O | 30.0 dB(A) |
| JF3510-12M | 12 VDC | 7.0 to 13.5 VDC | 0.06 A | 0.72 W | 6800 RPM | 0.10 m³/min / 3.50 CFM | 2.45 mmH2O / 0.10 inH2O | 30.0 dB(A) |
| JF3510-05H | 5 VDC | 4.3 to 5.4 VDC | 0.20 A | 1.00 W | 8000 RPM | 0.13 m³/min / 4.50 CFM | 3.24 mmH2O / 0.13 inH2O | 33.8 dB(A) |
| JF3510-12H | 12 VDC | 7.0 to 13.5 VDC | 0.09 A | 1.08 W | 8000 RPM | 0.13 m³/min / 4.50 CFM | 3.24 mmH2O / 0.13 inH2O | 33.8 dB(A) |
| JF3510-05H | 5 VDC | 4.3 to 5.4 VDC | 0.21 A | 1.05 W | 10000 RPM | 0.16 m³/min / 5.68 CFM | 5.10 mmH2O / 0.20 inH2O | 38.5 dB(A) |
| JF3510-12H | 12 VDC | 7.0 to 13.5 VDC | 0.10 A | 1.20 W | 10000 RPM | 0.16 m³/min / 5.68 CFM | 5.10 mmH2O / 0.20 inH2O | 38.5 dB(A) |
| JF3510-05U | 5 VDC | 4.3 to 5.4 VDC | 0.24 A | 1.20 W | 11500 RPM | 0.17 m³/min / 6.15 CFM | 6.38 mmH2O / 0.25 inH2O | 42.0 dB(A) |
| JF3510-12U | 12 VDC | 7.0 to 13.5 VDC | 0.11 A | 1.32 W | 11500 RPM | 0.17 m³/min / 6.15 CFM | 6.38 mmH2O / 0.25 inH2O | 42.0 dB(A) |
| Function group | Marked option(s) | Other options shown in the charts |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.
