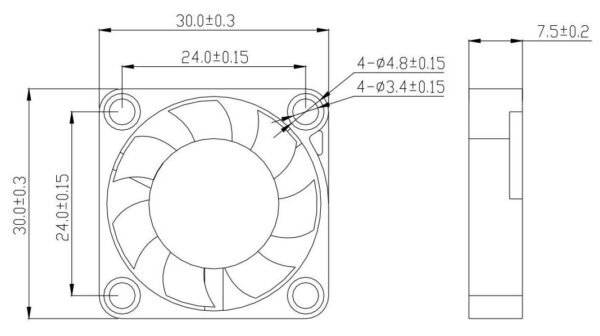

Dimension drawing

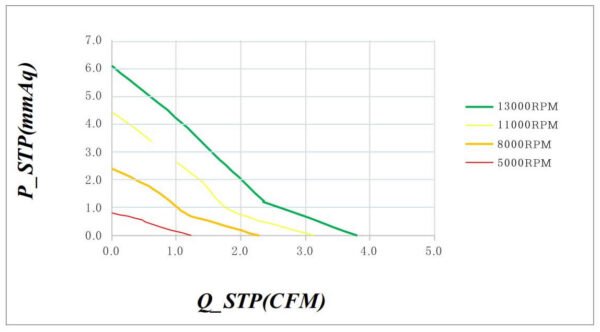

Airflow and static-pressure curve
JF3010 DC cooling fan.

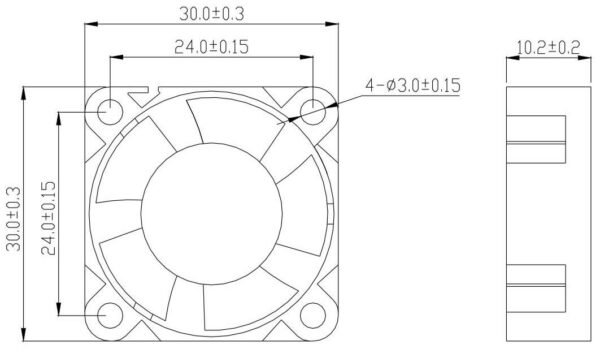

Dimension drawing

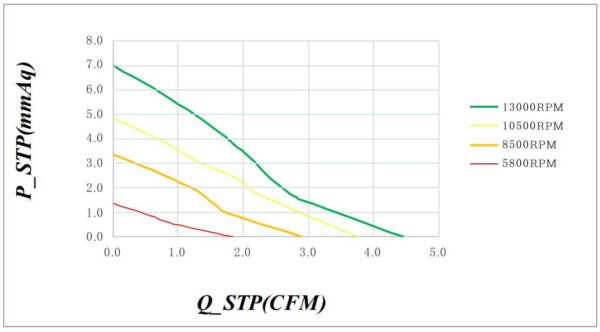

Airflow and static-pressure curve
Request a quote →
DC axial fans
JF030 — 30mm DC cooling fans
Review the JF030 30mm DC axial cooling fan family, source specification sheets and dimensions. Send your required configuration to JyFan.
Model selection
| Family | JF030 |
| Frame / size | 30 × 30 × 7 mm — JF3007 30 × 30 × 10 mm — JF3010 |
| Power type | DC |
| Bearing system | Sleeve / Hydraumatic / Dual Ball |
| Life Expectancy | 30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH. |
| Selection documents | See the model sheets and drawings below. |
Request the right configuration
Include the full model number, voltage, required airflow and pressure, quantity and intended application.
Inquire about JF030Price, lead time, bearing and control options are confirmed for the selected configuration.
Typical Applications
The JF030 family includes 30 × 30 × 7mm and 30 × 30 × 10mm DC axial fans for cooling compact electronic equipment.
- Industrial Control & Power Electronics: Cooling for embedded industrial control boards, miniature switching power supplies, wireless charging modules, M.2 SSDs, gas and PM2.5 sensors, microinverters and compact drive modules.
- 3D Printing Equipment: Cooling for 3D printer hotends and control boards, and ventilation in narrow enclosures.
- Instruments & Precision Testing Equipment: Portable analyzers, optical inspection instruments, compact burn-in test modules, ozone generators and miniature test fixtures.
- Medical Devices: Compact physiotherapy devices, portable diagnostic equipment, small oxygen concentrator modules and dental devices. A ball bearing version is recommended for longer service life; confirm noise performance for the selected model.
- Consumer Electronics & Smart Home: Mini projectors, aroma diffusers, humidifiers, air quality detectors, portable air purifiers and LED lighting modules.
- Telecommunications & IoT Equipment: Compact optical modules, small routers, IoT gateways, signal acquisition terminals and miniature network enclosures.
- Automotive & Special Lighting: Thermal management for vehicle LED headlights, onboard electronic modules, compact stage lights and small outdoor LED displays.
30mm DC fan series
JF3007
Review the product image, dimension drawing, performance curve and configuration-specific parameters for the JF3007 series.
Dimensions & performance
Model parameters & configuration options

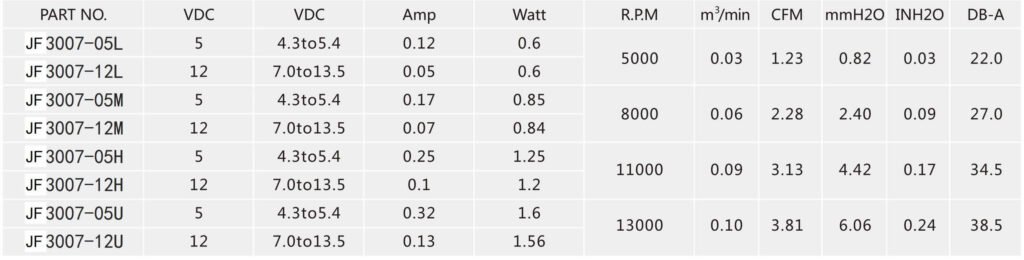

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF3007-05L | 5 VDC | 4.3 to 5.4 VDC | 0.12 A | 0.60 W | 5,000 RPM | 0.03 m³/min / 1.23 CFM | 0.82 mmH2O / 0.03 inH2O | 22.0 dB(A) |
| JF3007-12L | 12 VDC | 7.0 to 13.5 VDC | 0.05 A | 0.60 W | 5,000 RPM | 0.03 m³/min / 1.23 CFM | 0.82 mmH2O / 0.03 inH2O | 22.0 dB(A) |
| JF3007-05M | 5 VDC | 4.3 to 5.4 VDC | 0.17 A | 0.85 W | 8,000 RPM | 0.06 m³/min / 2.28 CFM | 2.40 mmH2O / 0.09 inH2O | 27.0 dB(A) |
| JF3007-12M | 12 VDC | 7.0 to 13.5 VDC | 0.07 A | 0.84 W | 8,000 RPM | 0.06 m³/min / 2.28 CFM | 2.40 mmH2O / 0.09 inH2O | 27.0 dB(A) |
| JF3007-05H | 5 VDC | 4.3 to 5.4 VDC | 0.25 A | 1.25 W | 11,000 RPM | 0.09 m³/min / 3.13 CFM | 4.42 mmH2O / 0.17 inH2O | 34.5 dB(A) |
| JF3007-12H | 12 VDC | 7.0 to 13.5 VDC | 0.10 A | 1.20 W | 11,000 RPM | 0.09 m³/min / 3.13 CFM | 4.42 mmH2O / 0.17 inH2O | 34.5 dB(A) |
| JF3007-05U | 5 VDC | 4.3 to 5.4 VDC | 0.32 A | 1.60 W | 13,000 RPM | 0.10 m³/min / 3.81 CFM | 6.06 mmH2O / 0.24 inH2O | 38.5 dB(A) |
| JF3007-12U | 12 VDC | 7.0 to 13.5 VDC | 0.13 A | 1.56 W | 13,000 RPM | 0.10 m³/min / 3.81 CFM | 6.06 mmH2O / 0.24 inH2O | 38.5 dB(A) |
| Function group | Marked option(s) | Other options shown in the chart |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
30mm DC fan series
JF3010
Review the product image, dimension drawing, performance curve and configuration-specific parameters for the JF3010 series.
Dimensions & performance
Model parameters & configuration options

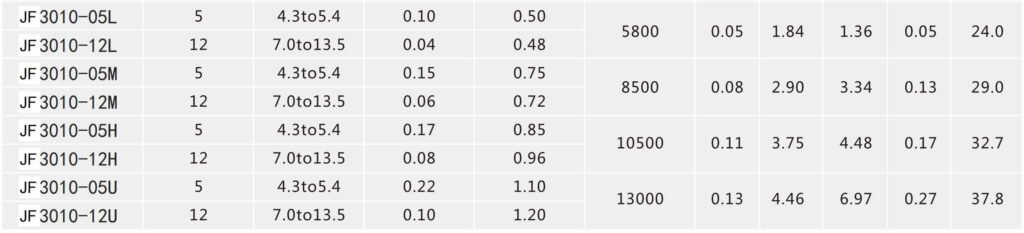

| Model | Rated voltage | Operating range | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF3010-05L | 5 VDC | 4.3 to 5.4 VDC | 0.10 A | 0.50 W | 5,800 RPM | 0.05 m³/min / 1.84 CFM | 1.36 mmH2O / 0.05 inH2O | 24.0 dB(A) |
| JF3010-12L | 12 VDC | 7.0 to 13.5 VDC | 0.04 A | 0.48 W | 5,800 RPM | 0.05 m³/min / 1.84 CFM | 1.36 mmH2O / 0.05 inH2O | 24.0 dB(A) |
| JF3010-05M | 5 VDC | 4.3 to 5.4 VDC | 0.15 A | 0.75 W | 8,500 RPM | 0.08 m³/min / 2.90 CFM | 3.34 mmH2O / 0.13 inH2O | 29.0 dB(A) |
| JF3010-12M | 12 VDC | 7.0 to 13.5 VDC | 0.06 A | 0.72 W | 8,500 RPM | 0.08 m³/min / 2.90 CFM | 3.34 mmH2O / 0.13 inH2O | 29.0 dB(A) |
| JF3010-05H | 5 VDC | 4.3 to 5.4 VDC | 0.17 A | 0.85 W | 10,500 RPM | 0.11 m³/min / 3.75 CFM | 4.48 mmH2O / 0.17 inH2O | 32.7 dB(A) |
| JF3010-12H | 12 VDC | 7.0 to 13.5 VDC | 0.08 A | 0.96 W | 10,500 RPM | 0.11 m³/min / 3.75 CFM | 4.48 mmH2O / 0.17 inH2O | 32.7 dB(A) |
| JF3010-05U | 5 VDC | 4.3 to 5.4 VDC | 0.22 A | 1.10 W | 13,000 RPM | 0.13 m³/min / 4.46 CFM | 6.97 mmH2O / 0.27 inH2O | 37.8 dB(A) |
| JF3010-12U | 12 VDC | 7.0 to 13.5 VDC | 0.10 A | 1.20 W | 13,000 RPM | 0.13 m³/min / 4.46 CFM | 6.97 mmH2O / 0.27 inH2O | 37.8 dB(A) |
| Function group | Marked option(s) | Other options shown in the chart |
|---|---|---|
| Motor protection | RP, LP | SS, CL, OVP |
| Signal output | FG, RD | RDB, LD |
| Speed control mode | PWM | TC, VC, CC, CS |
Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.
