JF025 — 25mm DC cooling fans

Review the JF025 25mm DC axial cooling fan family, source specification sheets and dimensions. Send your required configuration to JyFan.

Model selection

Family	JF025
Frame / size	25 × 25 × 7 mm — JF2507 25 × 25 × 10 mm — JF2510
Power type	DC
Bearing system	Sleeve / Hydraumatic / Dual Ball
Life Expectancy	30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH; 50,000 hrs (Dual Ball) continuous operating under 25°C, 65% RH.
Selection documents	See the model sheets and drawings below.

Include the full model number, voltage, required airflow and pressure, quantity and intended application.

Price, lead time, bearing and control options are confirmed for the selected configuration.

The JF025 family includes 25 × 25 × 7mm and 25 × 25 × 10mm DC axial fans for cooling compact electronic equipment.

Industrial Control & Power Electronics: Cooling for Raspberry Pi and embedded mainboards, miniature switching power supplies, wireless charging modules, M.2 SSDs, gas and PM2.5 sensors, and microinverters.
3D Printing Equipment: Cooling for 3D printer hotends and control boards, and ventilation in narrow enclosures.
Instruments & Precision Testing Equipment: Portable analyzers, optical inspection instruments, compact burn-in test modules and ozone generators.
Medical Devices: Compact physiotherapy devices, portable diagnostic equipment, small oxygen concentrator modules and dental devices. A ball bearing version is recommended for longer service life; confirm noise performance for the selected model.
Consumer Electronics & Smart Home: Mini projectors, aroma diffusers, humidifiers, air quality detectors, portable air purifiers and LED lighting modules.
UAVs & Smart Hardware: Thermal management for flight controllers, onboard cameras and portable smart terminals.
Telecommunications & IoT Equipment: Compact optical modules, small routers, IoT gateways and signal acquisition modules.

25mm DC fan series

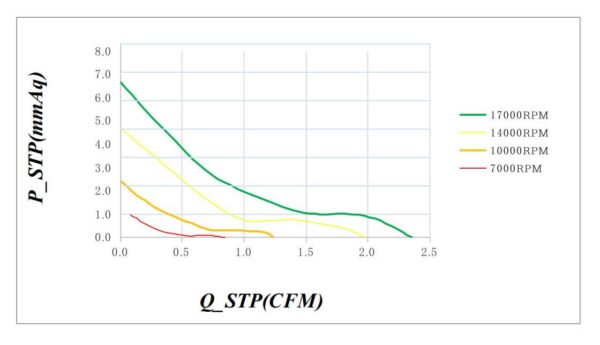

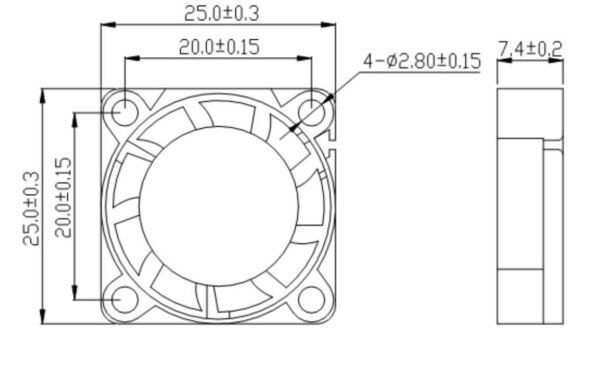

Review the product image, dimension drawing, performance curve and configuration-specific parameters for the JF2507 series.

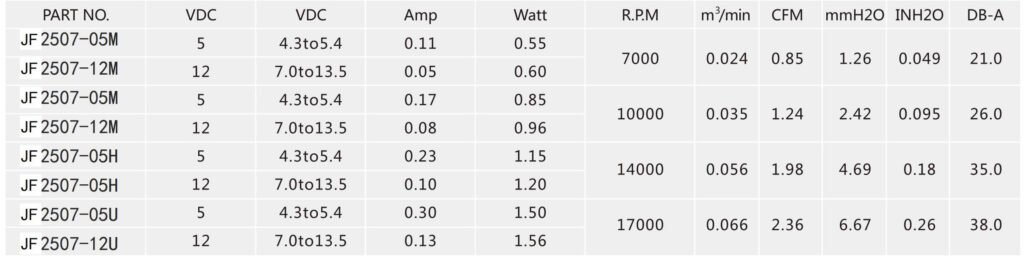

JF2507 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF2507-05L	5 VDC	4.3 to 5.4 VDC	0.11 A	0.55 W	7,000 RPM	0.024 m³/min / 0.85 CFM	1.26 mmH2O / 0.049 inH2O	21.0 dB(A)
JF2507-12L	12 VDC	7.0 to 13.5 VDC	0.05 A	0.60 W	7,000 RPM	0.024 m³/min / 0.85 CFM	1.26 mmH2O / 0.049 inH2O	21.0 dB(A)
JF2507-05M	5 VDC	4.3 to 5.4 VDC	0.17 A	0.85 W	10,000 RPM	0.035 m³/min / 1.24 CFM	2.42 mmH2O / 0.095 inH2O	26.0 dB(A)
JF2507-12M	12 VDC	7.0 to 13.5 VDC	0.08 A	0.96 W	10,000 RPM	0.035 m³/min / 1.24 CFM	2.42 mmH2O / 0.095 inH2O	26.0 dB(A)
JF2507-05H	5 VDC	4.3 to 5.4 VDC	0.23 A	1.15 W	14,000 RPM	0.056 m³/min / 1.98 CFM	4.69 mmH2O / 0.18 inH2O	35.0 dB(A)
JF2507-12H	12 VDC	7.0 to 13.5 VDC	0.10 A	1.20 W	14,000 RPM	0.056 m³/min / 1.98 CFM	4.69 mmH2O / 0.18 inH2O	35.0 dB(A)
JF2507-05U	5 VDC	4.3 to 5.4 VDC	0.30 A	1.50 W	17,000 RPM	0.066 m³/min / 2.36 CFM	6.67 mmH2O / 0.26 inH2O	38.0 dB(A)
JF2507-12U	12 VDC	7.0 to 13.5 VDC	0.13 A	1.56 W	17,000 RPM	0.066 m³/min / 2.36 CFM	6.67 mmH2O / 0.26 inH2O	38.0 dB(A)

Configuration marks shown in the supplied option chart.
Function group	Marked option(s)	Other options shown in the chart
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

25mm DC fan series

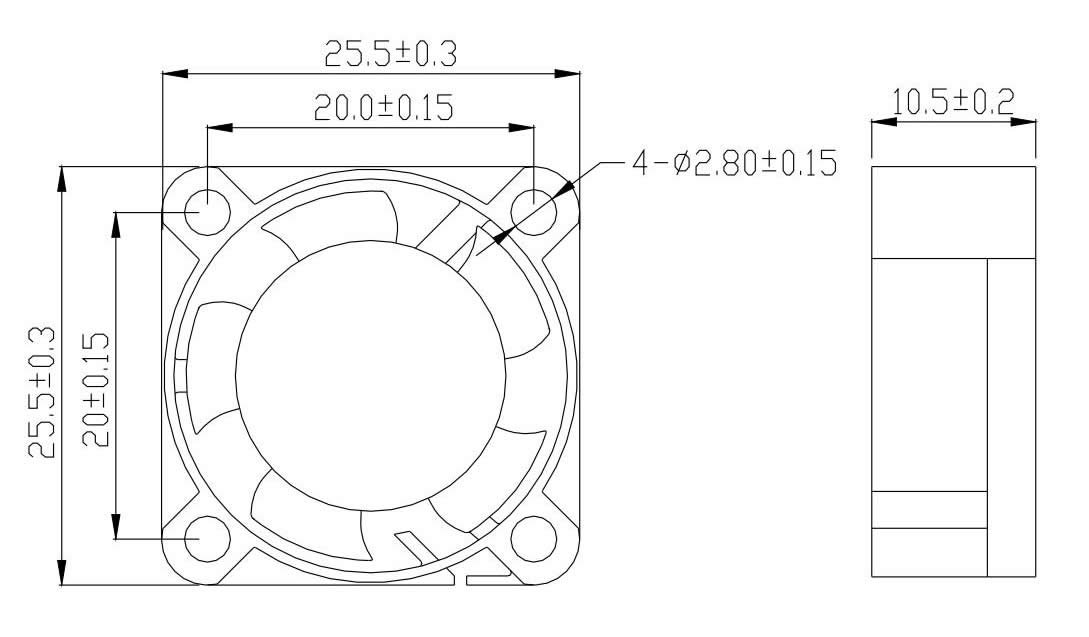

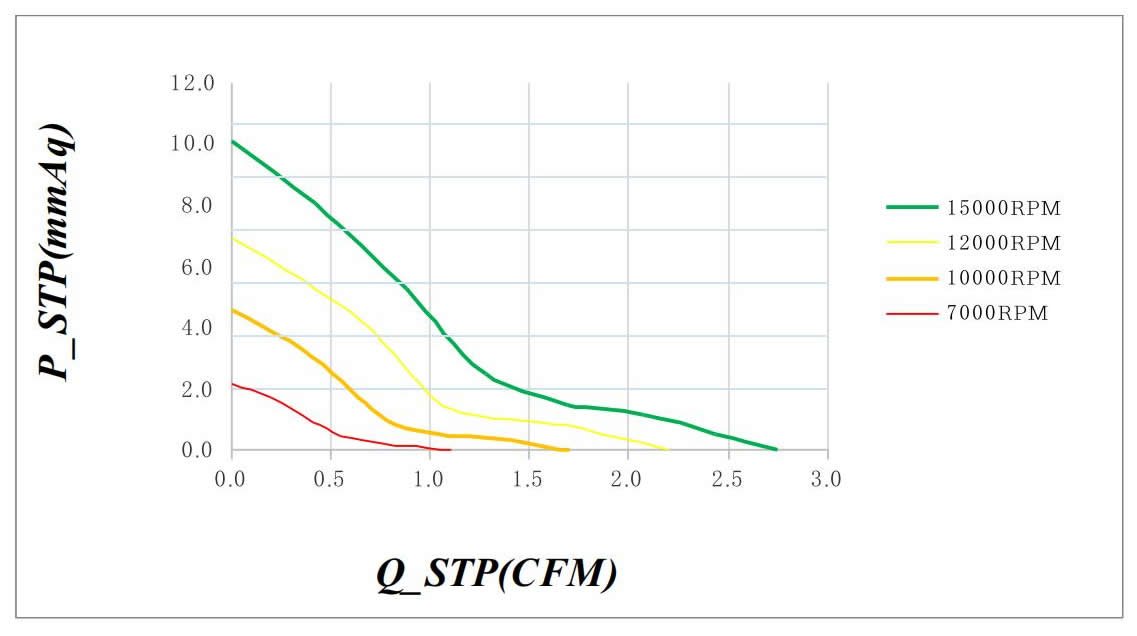

Review the product image, dimension drawing, performance curve and configuration-specific parameters for the JF2510 series.

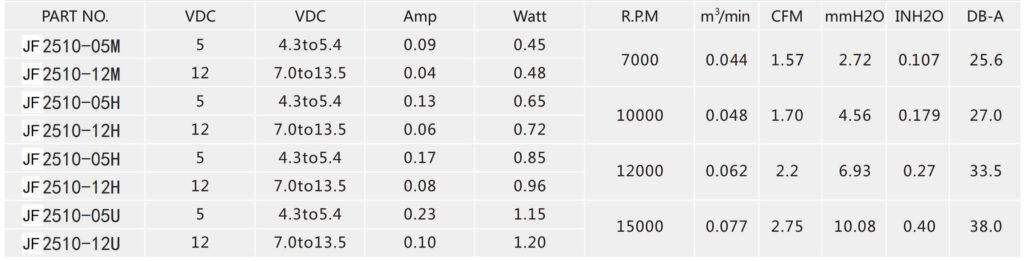

JF2510 configuration values transcribed from the supplied product data.
Model	Rated voltage	Operating range	Current	Power	Speed	Airflow	Static pressure	Noise
JF2510-05L	5 VDC	4.3 to 5.4 VDC	0.09 A	0.45 W	7,000 RPM	0.044 m³/min / 1.57 CFM	2.72 mmH2O / 0.107 inH2O	25.6 dB(A)
JF2510-12L	12 VDC	7.0 to 13.5 VDC	0.04 A	0.48 W	7,000 RPM	0.044 m³/min / 1.57 CFM	2.72 mmH2O / 0.107 inH2O	25.6 dB(A)
JF2510-05M	5 VDC	4.3 to 5.4 VDC	0.13 A	0.65 W	10,000 RPM	0.048 m³/min / 1.70 CFM	4.56 mmH2O / 0.179 inH2O	27.0 dB(A)
JF2510-12M	12 VDC	7.0 to 13.5 VDC	0.06 A	0.72 W	10,000 RPM	0.048 m³/min / 1.70 CFM	4.56 mmH2O / 0.179 inH2O	27.0 dB(A)
JF2510-05H	5 VDC	4.3 to 5.4 VDC	0.17 A	0.85 W	12,000 RPM	0.062 m³/min / 2.2 CFM	6.93 mmH2O / 0.27 inH2O	33.5 dB(A)
JF2510-12H	12 VDC	7.0 to 13.5 VDC	0.08 A	0.96 W	12,000 RPM	0.062 m³/min / 2.2 CFM	6.93 mmH2O / 0.27 inH2O	33.5 dB(A)
JF2510-05U	5 VDC	4.3 to 5.4 VDC	0.23 A	1.15 W	15,000 RPM	0.077 m³/min / 2.75 CFM	10.08 mmH2O / 0.40 inH2O	38.0 dB(A)
JF2510-12U	12 VDC	7.0 to 13.5 VDC	0.10 A	1.20 W	15,000 RPM	0.077 m³/min / 2.75 CFM	10.08 mmH2O / 0.40 inH2O	38.0 dB(A)

Configuration marks shown in the supplied option chart.
Function group	Marked option(s)	Other options shown in the chart
Motor protection	RP, LP	SS, CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.

Share the size, voltage, airflow, operating conditions and quantity.
