JF015 — 15mm DC cooling fans

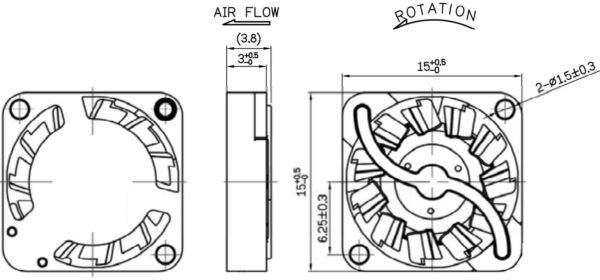

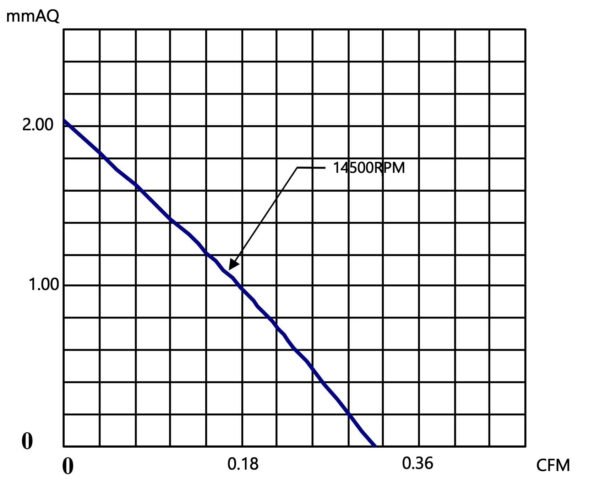

Review the JF015 15mm DC cooling fan family, model parameters, dimension drawing and performance curve. Send your required configuration to JyFan.

Model selection

Family	JF015
Frame / size	15 × 15 × 3mm
Power type	DC
Bearing system	Sleeve / Hydraumatic
Life Expectancy	30,000 hrs (Sleeve) continuous operating under 25°C, 65% RH; 40,000 hrs (Hydraumatic) continuous operating under 25°C, 65% RH.
Selection documents	See the model sheets and drawings below.

Include the full model number, voltage, required airflow and pressure, quantity and intended application.

Price, lead time, bearing and control options are confirmed for the selected configuration.

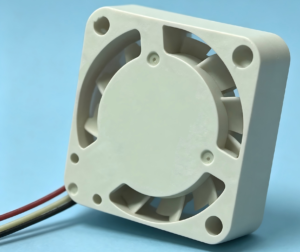

JF1503 is a 15 × 15 × 3 mm ultra-thin micro DC axial cooling fan for wearables, sensors and compact electronic devices.

Consumer Portable Electronics: Heat dissipation for smart-wearable devices, VR glasses and AR headsets.
Small Medical Devices: Portable detectors, handheld analytical instruments, compact beauty & skincare devices.
Portable IoT Hardware: Miniature gateways, compact communication modules, portable 5G terminals.
Miniature Projection: Internal cooling for pocket-size mini projectors.
Smart Home Products: Compact smart cameras, portable humidifiers and mini air-purification modules.
Hand-held Industrial Equipment: Handheld measuring testers, portable scanning hosts and compact industrial handheld terminals.

Open an image to inspect the original document at full size.

Configuration marks shown on the supplied option chart.
Function group	Marked option(s)	Other options shown in the chart
Motor protection	RP, SS, LP	CL, OVP
Signal output	FG, RD	RDB, LD
Speed control mode	PWM	TC, VC, CC, CS

Check the full model designation on each document. Verify performance at your system operating point and validate the fan in the finished equipment.

Share the size, voltage, airflow, operating conditions and quantity.
